Tektronix DSA70000D Series User Manual

Appendix C
Optional accessories
The following accessories can be ordered for your probe.
Accessory Tektronix part number
Ground Lead, Clip-on, 6 in
196-3198-xx
Ground Lead, Alligator, 12 in
196-3512-xx
MicroCKT Test Tip
206-0569-xx
Circuit Board Test Point/PCB Adapter
016-2016-xx
Compact Probe Tip Ckt Board Test Point
131-4210-xx
Wire, spool, 32 AWG
020-3045-xx

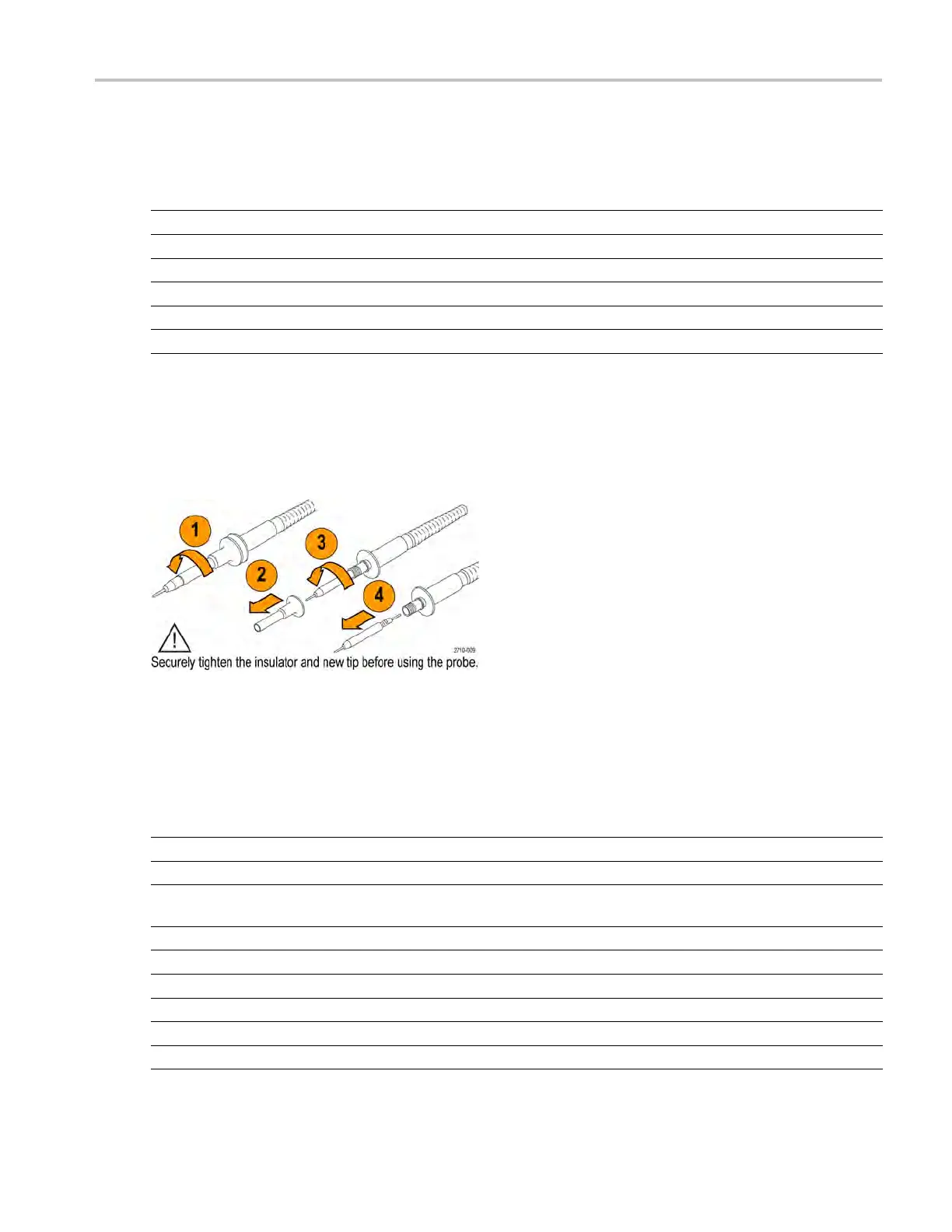

Replacing the probe tip
Order Tektronix part number 206-0610-xx for rigid tip replacement, or o rder part number 206-0611–xx for pogo pin
replacement.
Specifications
Table 1: Electrical and mechanical specifications
Characteristic TPP0500 TPP1000
Bandwidth (–3 dB)
500 MHz
1GHz
System rise time (ty pical)
<700 ps <350 ps
System input capacitance Rigid tip: 3.9 pF ±0.3 pf
Pogo pin tip: 5.1 pf ±0.5 pf
System attenuation a ccuracy 10:1 ±2.2%
Probe series resistance @DC 9.75 MΩ ±0.5%
System input resistance @DC 10 MΩ ±2%
Propagation delay ~5.67 ns
Maximum input voltage
300 V
RMS
CAT II
Cable length
1.3 m, ±3 cm
MSO/DPO70000DX, MSO/DPO70000C, DP O7000C, and MS O/DPO5000 Series U ser M anual 179
