Acquisition

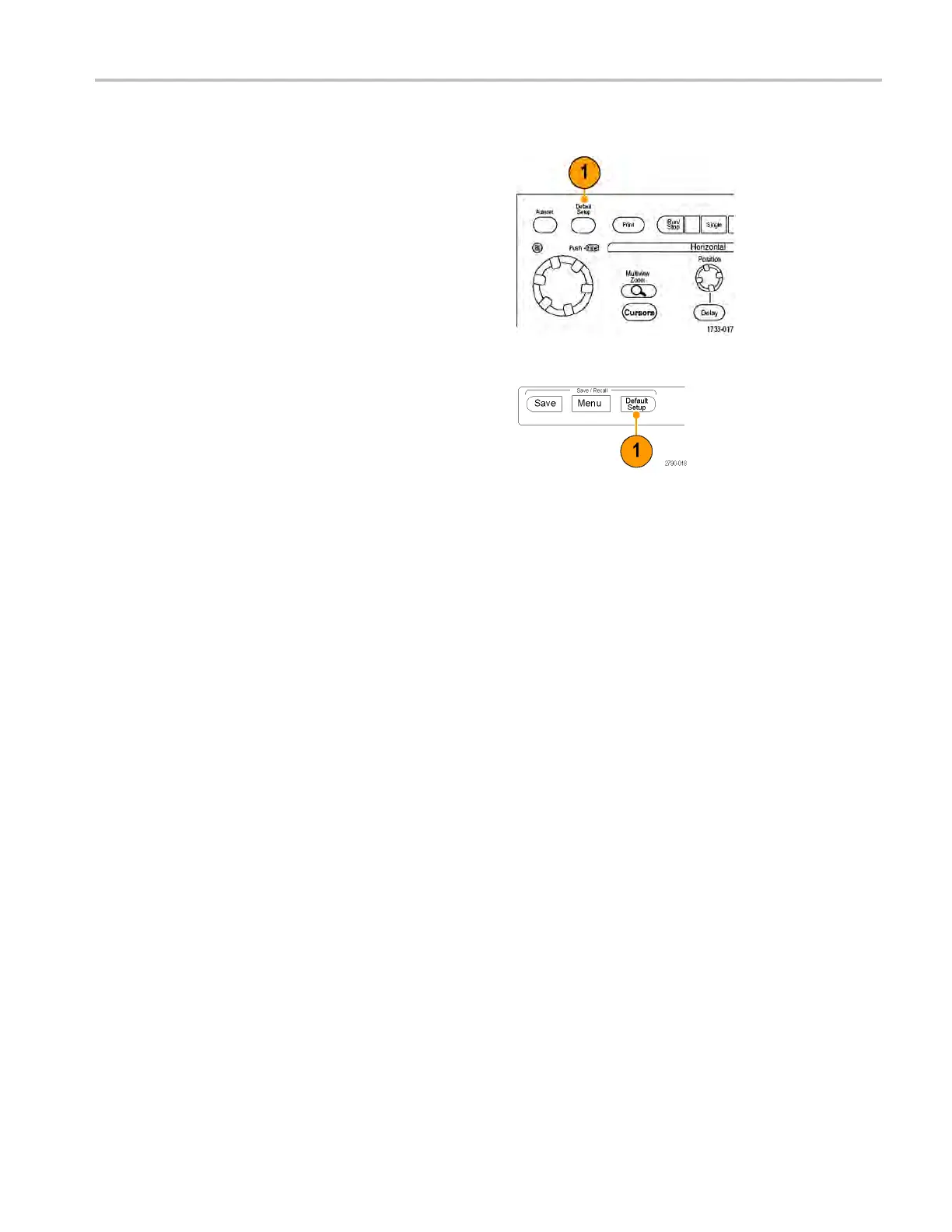

Using Default Setup

1. To quickly ret

urn to the factory default settings, push

DEFAULT SETUP.

MSO/DPO700

00DX, MSO/DPO70000C, and DPO7 000C Series

MSO5000 and DPO5000 Series

MSO/DPO70000DX, MSO/DPO70000C, DP O7000C, and MS O/DPO5000 Series U ser M anual 35
