Display a wavefo
rm

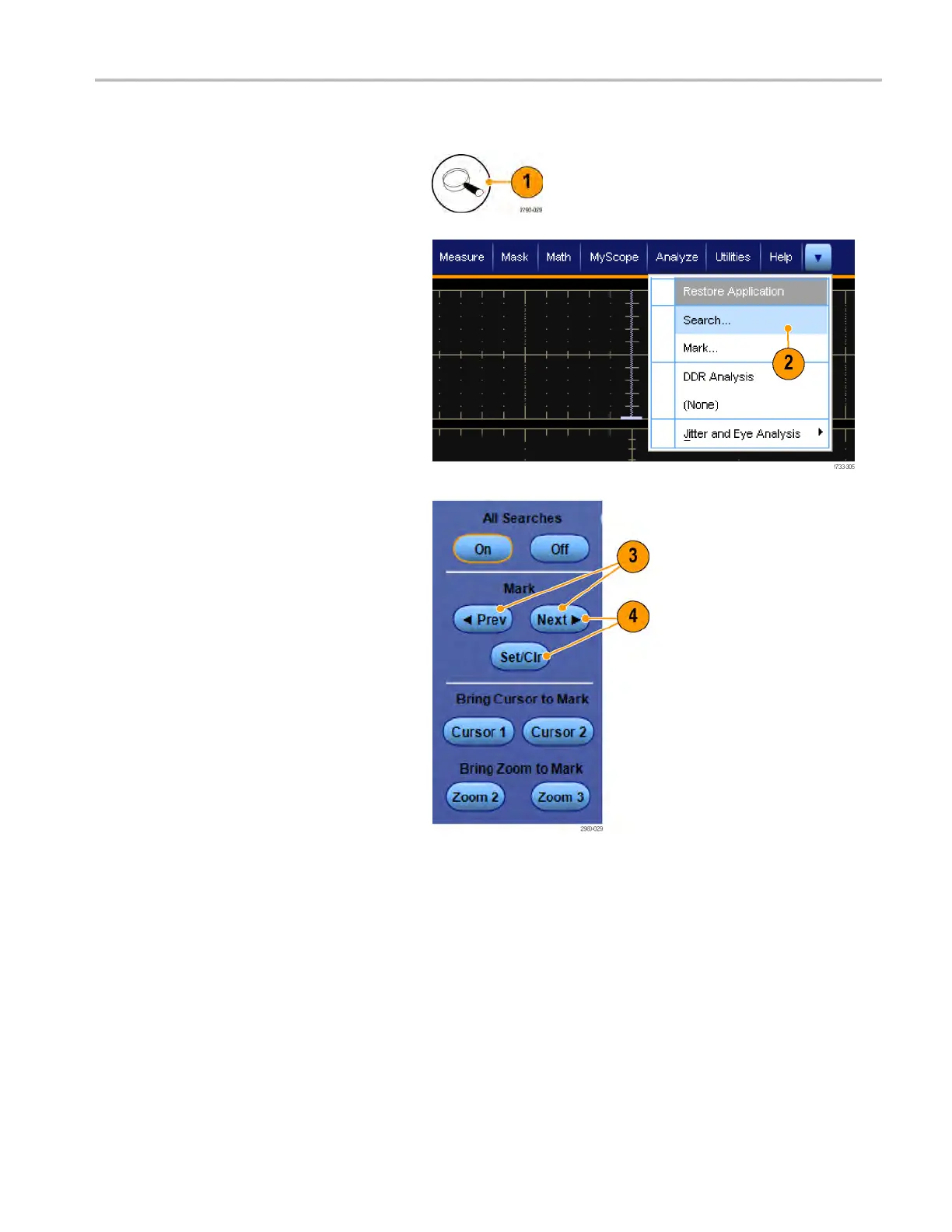

To manually set and clear (delete) marks:
1. Turn on Multiview Zoom. Zoom 1 is
used with mark
s.
(See page 96, Using MultiView Zoom.)
2. Select Analyze > Search.
3. Move (the zoom box) to the area on
the wavef
orm w here you want to set
(or clear) a search mark by turning a
multipurpose knob.
Push the
Next ( →)orPrev(←)arrow
buttontojumptoanexistingmark.
4. Push Set Clr or the front panel Set/Clear
button.
If no se
arch mark is at the screen center,
the instrument will add one.
When a mark is created, the horizontal
zoom f
actor is saved. When you use
Next or Prev to move between marks,
the zoom factor is restored.
