Saving and recal

ling information

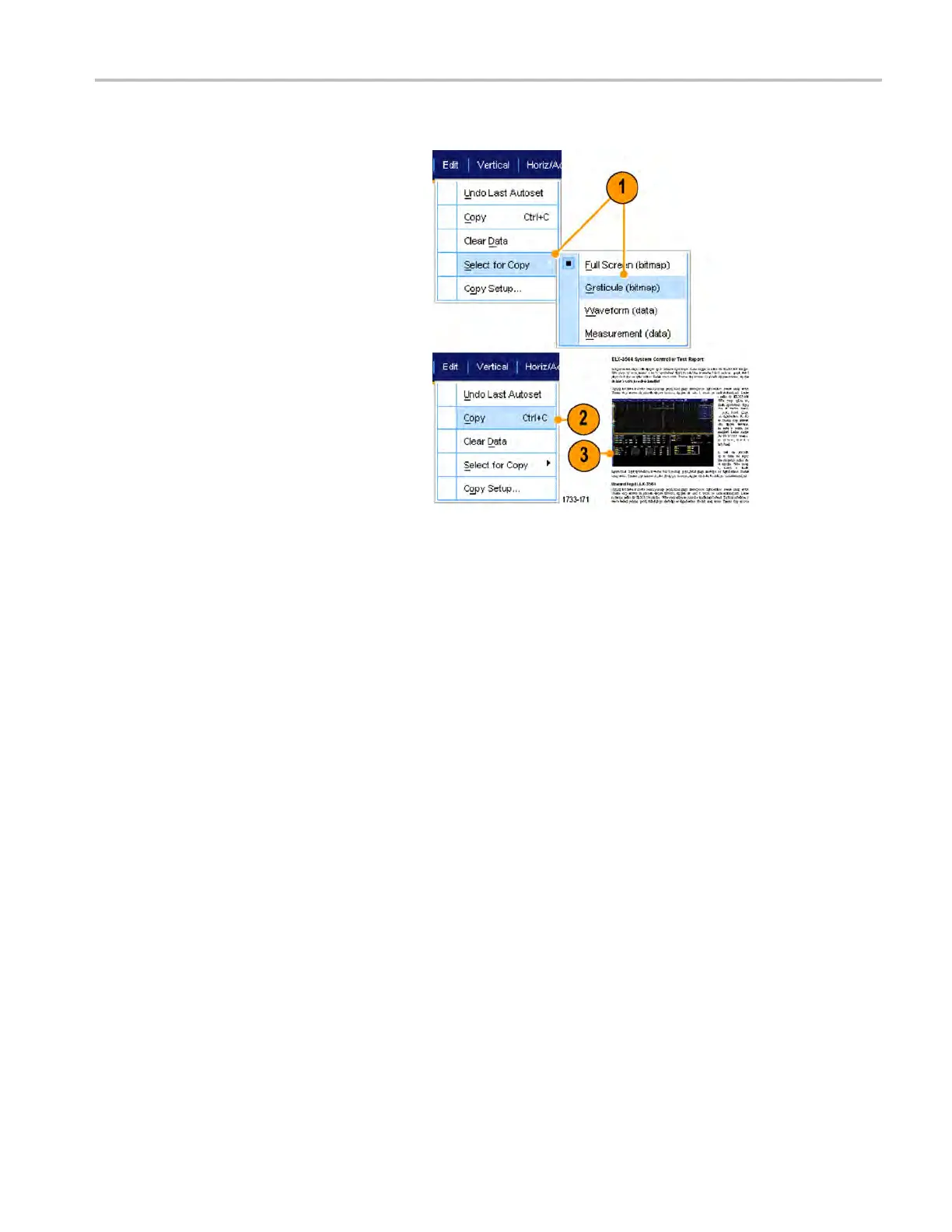

To copy images, waveforms, or measurements, use the following procedure:

1. Select the item that you want to copy.

2. Select Edit > Copy or press Ctrl + C.

3. Press Ctrl + V to paste the item into a

Windows application.

MSO/DPO70000DX, MSO/DPO70000C, DP O7000C, and MS O/DPO5000 Series U ser M anual 161
