Getting acquain

tedwithyourinstrument

MSO5000 and DPO5000 Series

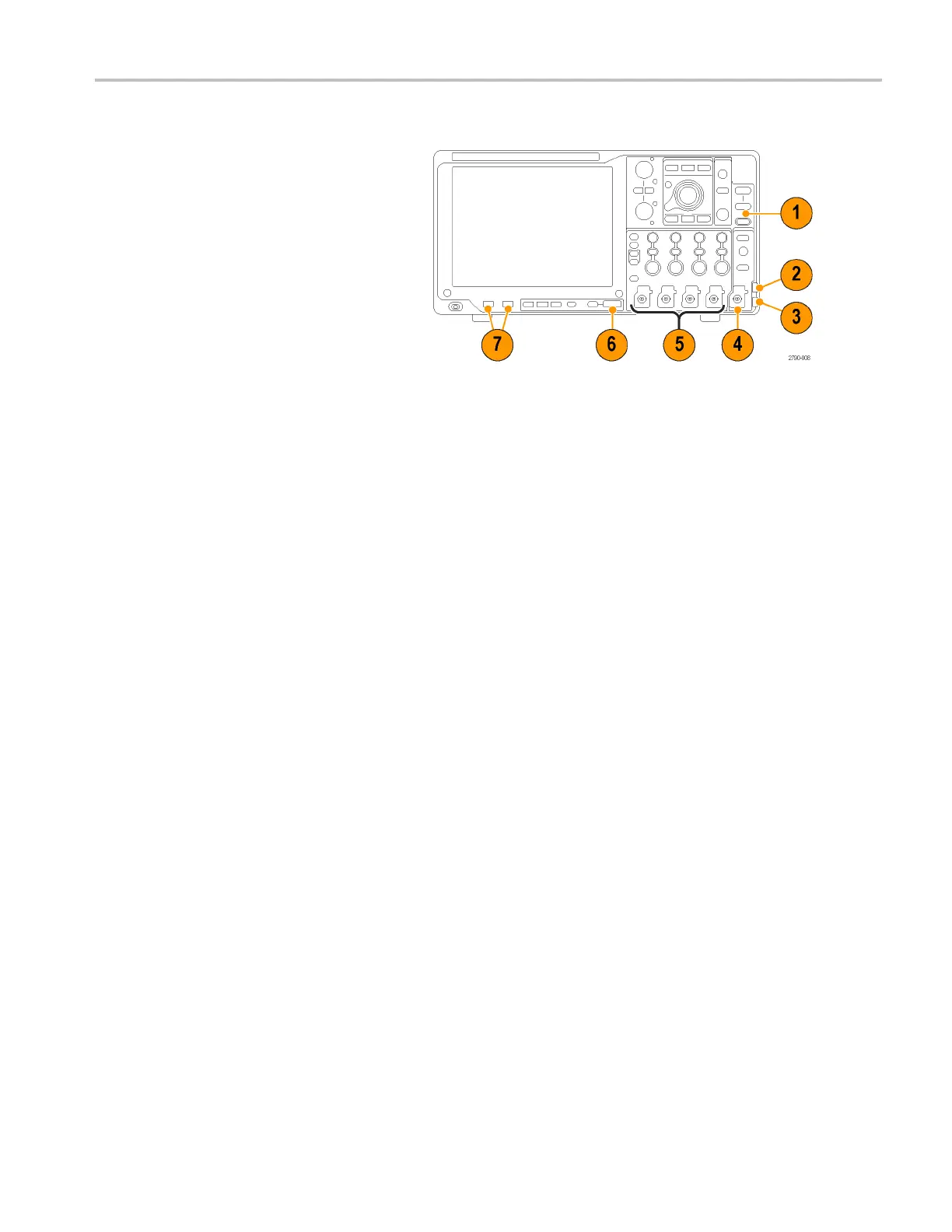

1. Front panel controls

2. Ground terminal

3. Probe compensation output

4. Auxiliary Trigger input

5. Channel 1–4 inputs

6. Logic probe input

7. USB ports

MSO5000 and DPO5000 Series
