Theory
of
Operation - FG
5010
VON
VUP
+
VON
-V
4-16
Q1341
Juve
+
V
R1343-
|
R1344
+ 4V
R1335
U1351A
R1354
-12V
than the first . At the next lower frequency range , K1322B
opens , which inhibits the transmission gate from supplying
current to the amplifier , so no shrink current is supplied on
that range or lower ones .
Amplifier U1641A produces a voltage that is proportional
to both the input resistance selected , and the voltage ap
plied to the input . Feedback is ordinarily through R1752 for
low - level inputs , but in the case of a large voltage ( such as
the
highest
frequency range
)
CR1750 conducts
to
reduce
the stage gain by a factor that varies nonlinearily to approxi
mately 3.5 at the highest input voltage .
The lower
section of the
amplifier
is nearly
the same ,
except that the input voltage is V only . The output of
+ 4V
R1339
*
-12V
Q1342
M
TRIANGLE
FROM
TRIANGLE
BUFFER
ME
VR1351

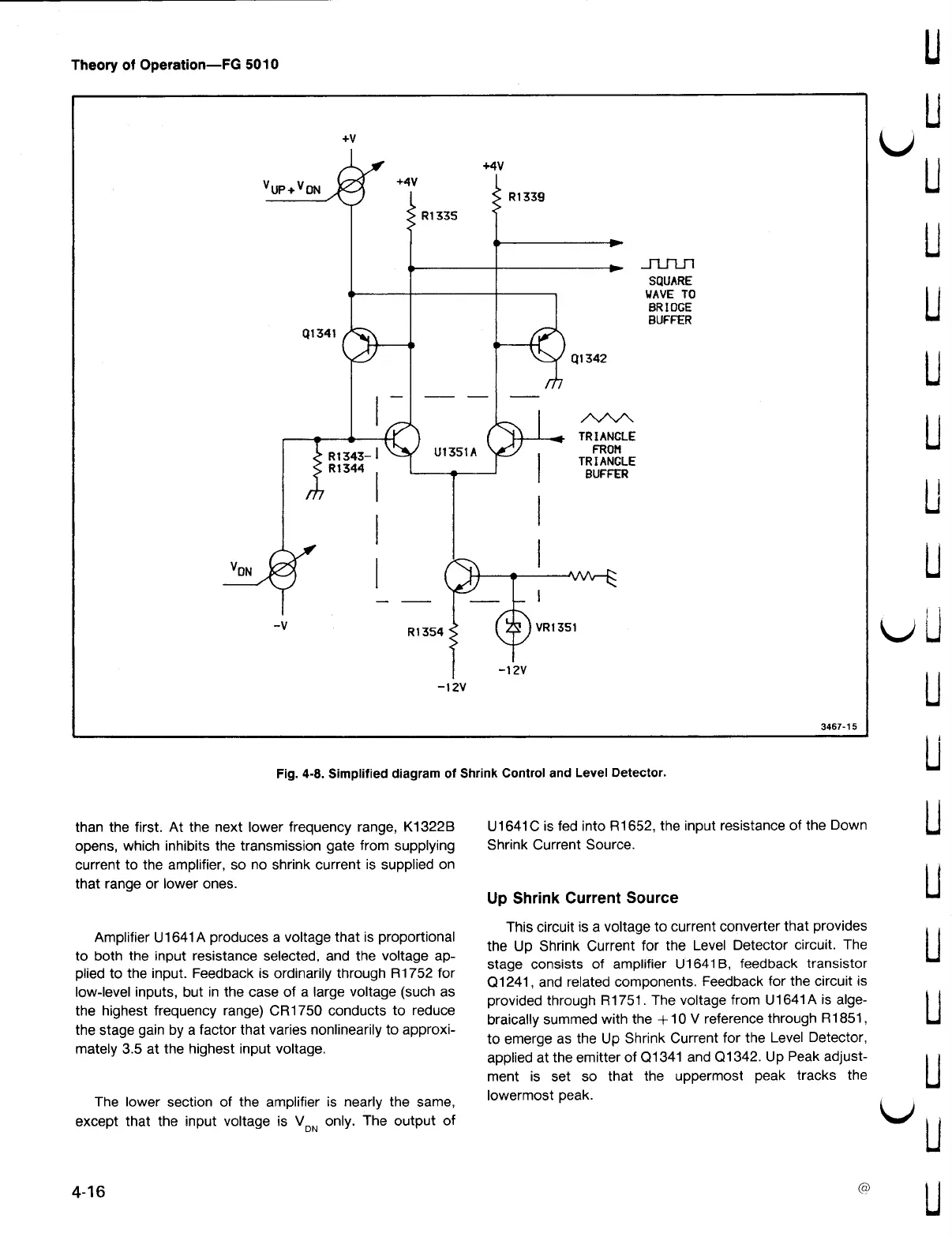

Fig
. 4-8 .
Simplified
diagram of
Shrink Control and
Level
Detector .
JUM
SQUARE
WAVE
TO
BRIDGE
BUFFER
3467-15
U1641C is fed into R1652 , the input resistance of the Down
Shrink
Current
Source
.
Up
Shrink
Current
Source
This circuit is a voltage to current converter that provides
the
Up
Shrink Current
for the Level
Detector
circuit
. The
stage
consists of
amplifier U1641B
, feedback
transistor
Q1241 , and
related
components
. Feedback
for the
circuit is
provided
through R1751 . The
voltage
from
U1641A
is alge
braically summed with the +10 V reference through R1851 ,
to
emerge
as the
Up
Shrink
Current
for the
Level
Detector
,
applied
at the emitter
of Q1341
and Q1342 . Up
Peak adjust
ment is set so that the uppermost peak tracks the
lowermost
peak .
(
8
)
U
U
U
U
U
U
U
U
U
U
U
U
