Section
3: Using a remote interface Model 2450 SourceMeter® Instrument
User's Manual
3-10 2450-900-01 Rev. E / August 2019
4. Select USB.
5. Click Next. The Select Instrument Driver dialog box is displayed.

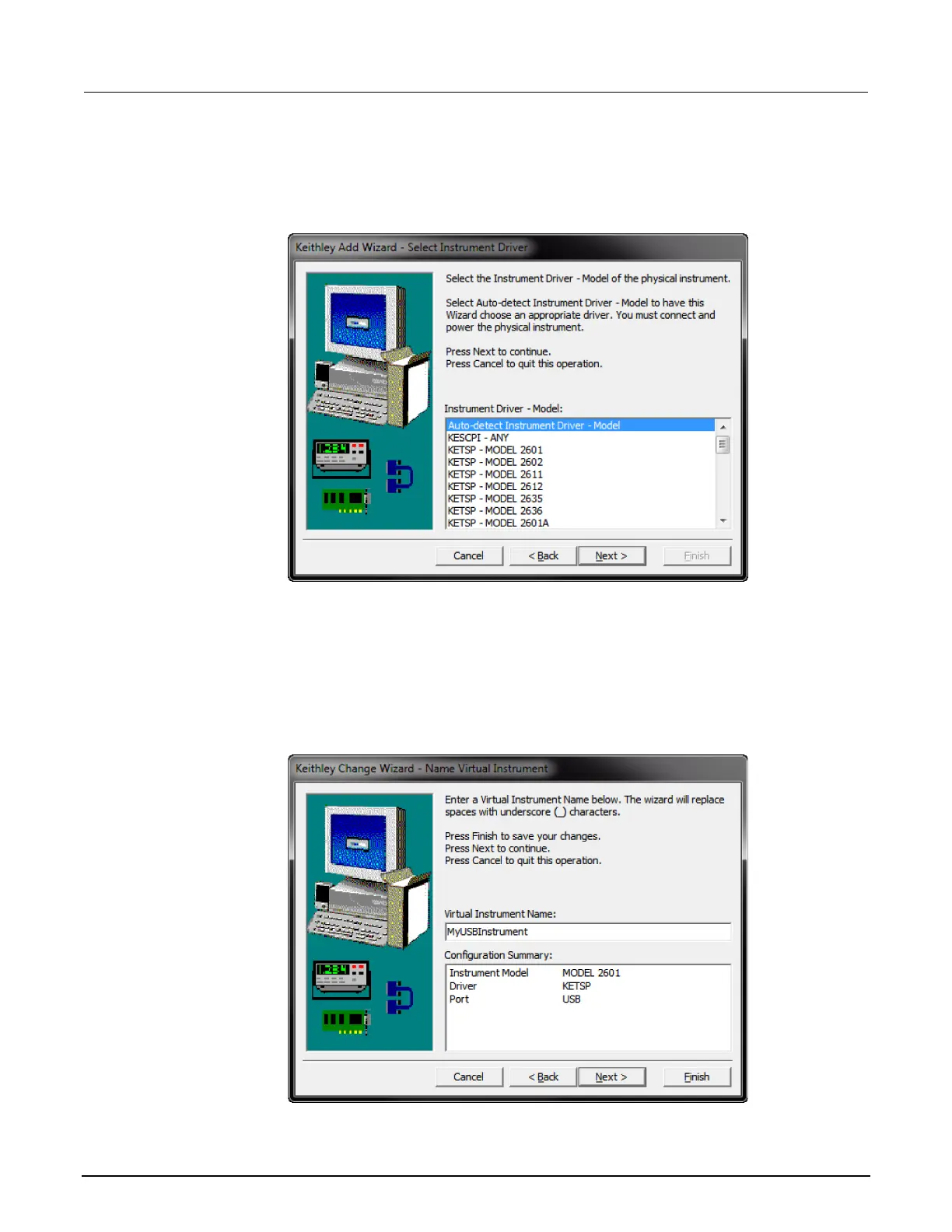

Figure 15: Select Instrument Driver dialog box
6. Select Auto-detect Instrument Driver - Model.
7. Click Next. The Configure USB Instrument dialog box is displayed with the detected instrument
VISA resource string visible.
8. Click Next. The Name Virtual Instrument dialog box is displayed.
Figure 16: Name Virtual Instrument dialog box
