Table 2: Maximum input with a P6316 Digital Probe
Input Description
Threshold Accuracy ±(100 mV + 3% of threshold setting after calibration)
Threshold Range +25 V to –15 V
Maximum nondestructive input signal to probe +30 V to -20 V
Minimum signal swing 500 mV
peak-to-peak
Input resistance 101 kΩ
Input capacitance 8.0 pF typical
Pollution Degree 2, indoor use only
Humidity 5% to 95% relative humidity

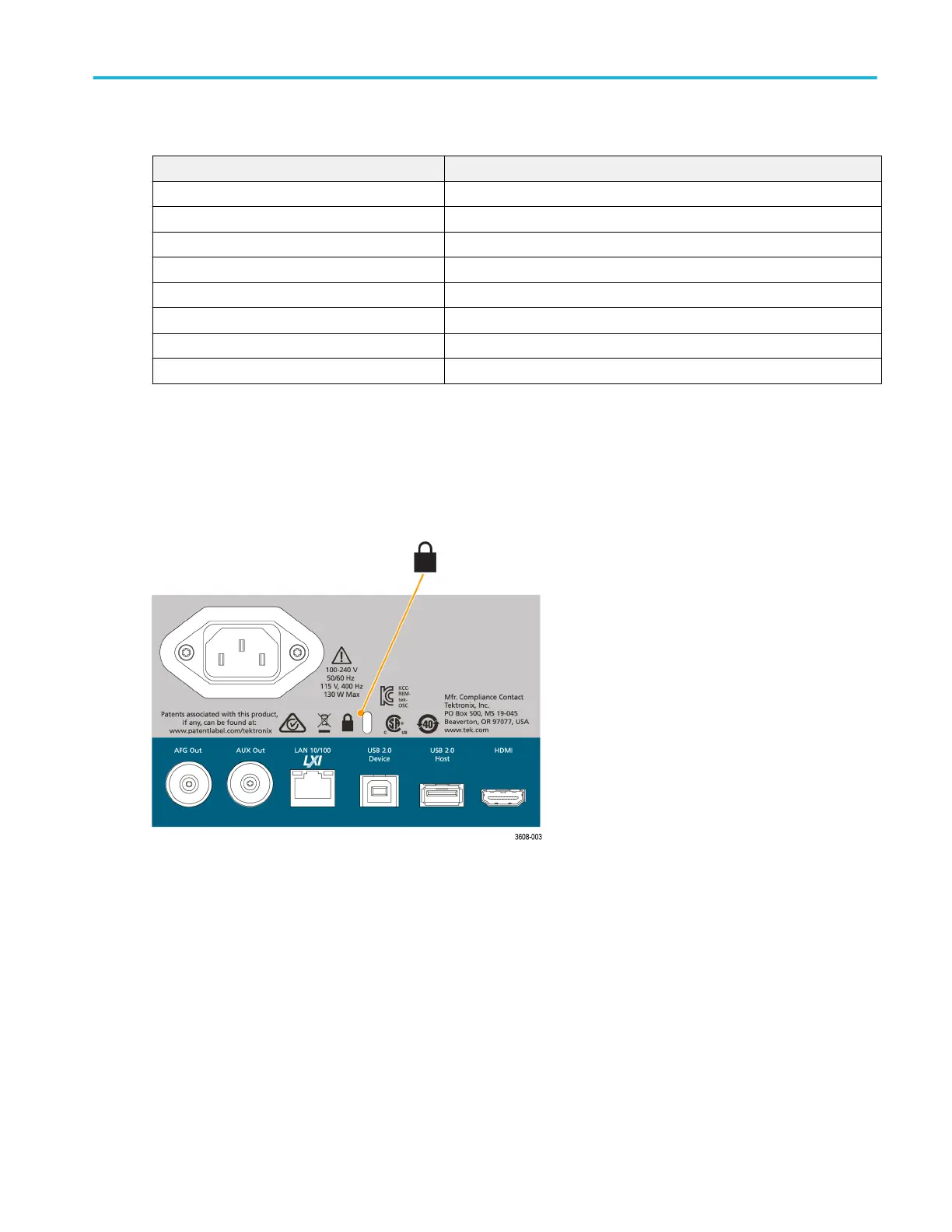

Secure (lock) the oscilloscope
Lock an oscilloscope to a test bench or equipment rack to prevent property loss.
Attach a standard laptop security lock to the rear panel of the oscilloscope, to secure the oscilloscope to a workbench, rack, or
other location.
Installing your instrument
MDO32, MDO34 Installation and Safety Manual 3
