9. Probe connectors:
■
Analog input connectors support all TekVPI+ and TekVPI measurement probes, BNC passive probes, the P6316 Logic
Probe, and BNC cables. See Connecting probes on page 5.

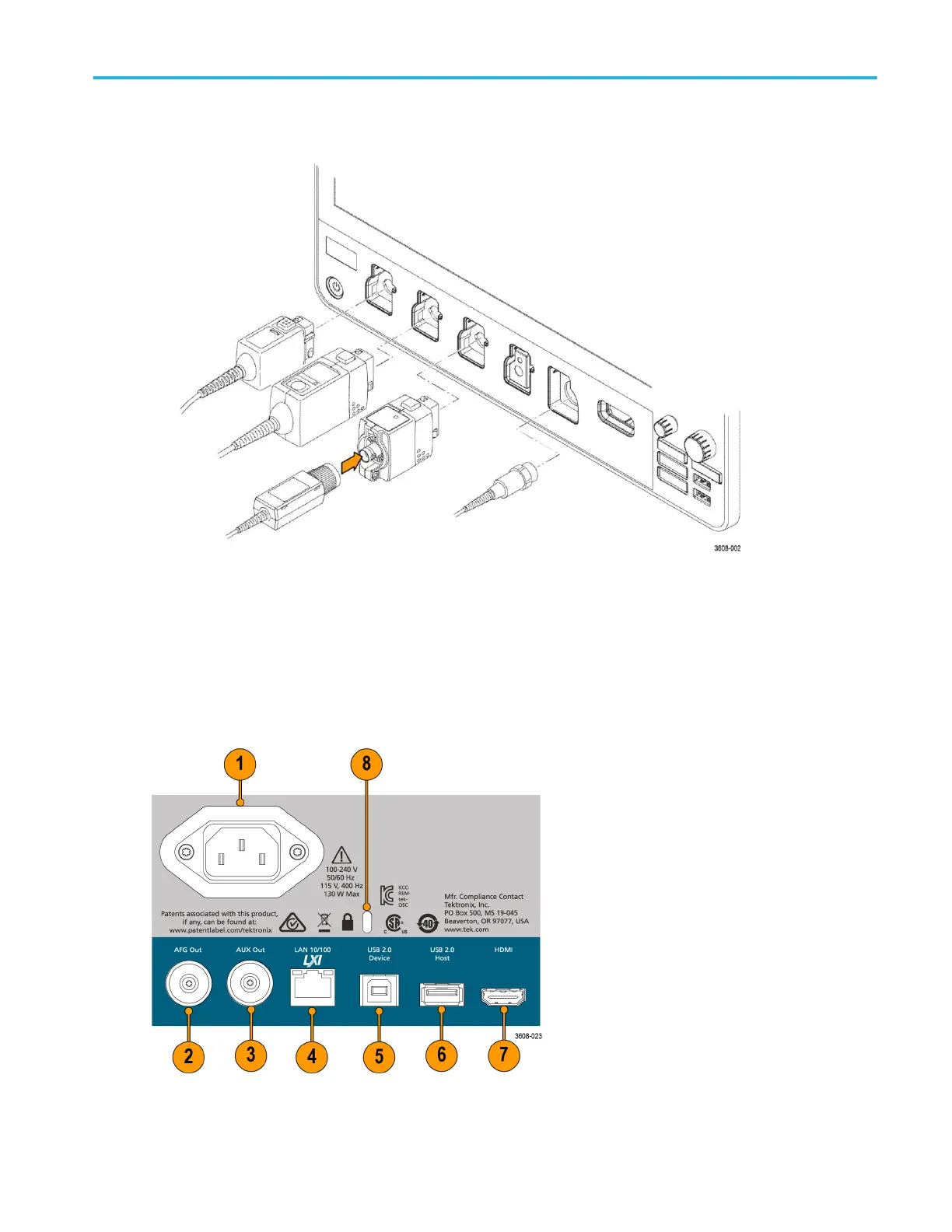

Rear panel connections
The rear panel connections supply power to the oscilloscope and provide connectors for network, USB devices, video, reference
signals, and the AFG output.
1. Power cord connector. Use only the power cord specified for this product and certified for the country of use.
2. AFG Out is the signal output for the optional Arbitrary Function Generator (AFG) feature.
Getting acquainted with your instrument
MDO32, MDO34 Installation and Safety Manual 15
