7. Ground and Probe Compensation connectors:
■

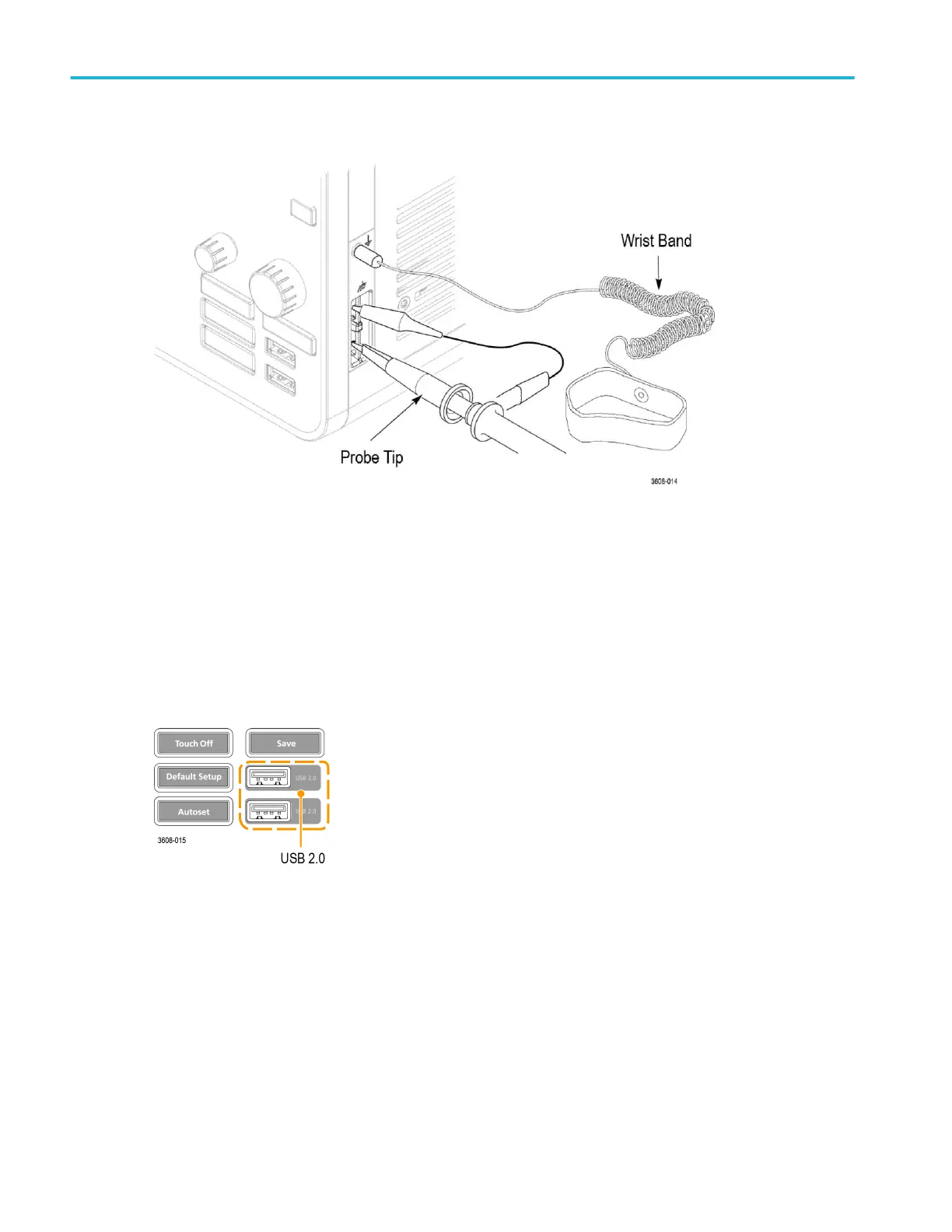

The Ground and Probe Compensation connectors are located at the lower right side of the instrument, near the front
panel. The Ground connector (the small hole in the case) provides an electrically grounded (through a resistor)
connection point to attach an anti-static wrist strap to reduce electrostatic damage (ESD) while you handle or probe the
DUT.
■
The Probe Compensation connections provide a ground connector (upper tab) and 1 kHz square wave source (lower
tab) for adjusting the high-frequency response of a passive probe (probe compensation). The oscilloscope uses this
signal to automatically compensate supported probes, including the ones that ship with the product. See Compensate
TPP0250, TPP0500B, or TPP1000 probes on page 33.
8. USB Host ports (USB 2.0):
■
USB ports are located at the lower right corner of the front panel and on the rear panel. Connect USB flash drives to
which you can save or recall data (such as instrument software updates, waveforms, settings, and screen captures) or
connect peripheral devices such as a mouse or keyboard.
Getting acquainted with your instrument
14 MDO32, MDO34 Installation and Safety Manual
