Tektronix MSO56B Installation And Safety Manual

Getting acquainted with your instrument
The following content provides a high-level description of the instrument controls and user interface.
Refer to the 5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Help on the instrument for detailed information on
using the controls and user interface to display waveforms and take measurements.

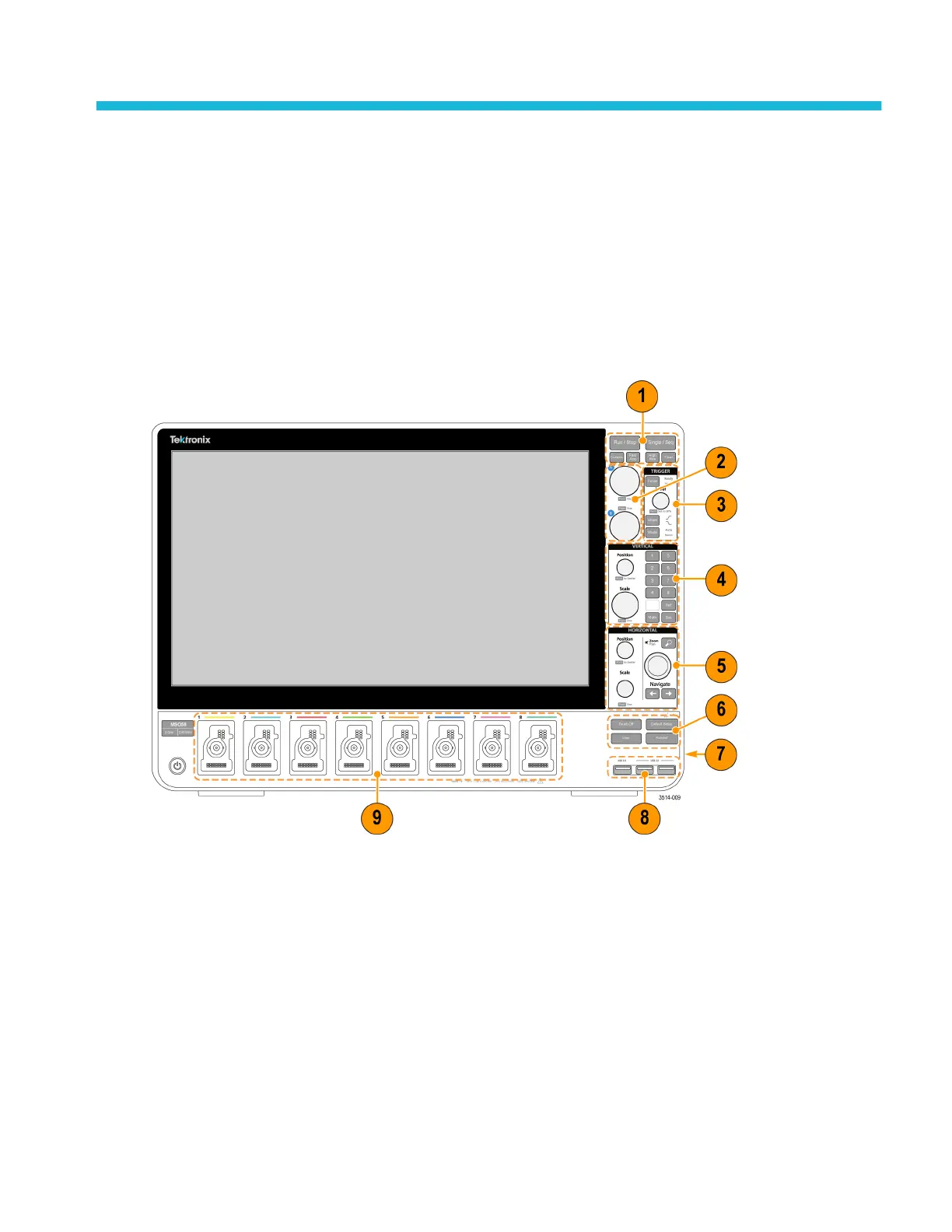

Front panel controls and connectors
The front panel controls provide direct access to key instrument settings such as vertical, horizontal, trigger, cursors, and zoom.
The connectors are where you input signals with probes or cables, or insert USB devices.
1. Acquisition and Cursors controls:
MSO54, MSO56, MSO58 Installation and Safety Manual 7

Tektronix MSO56B Specifications

General

Brand	Tektronix
Model	MSO56B
Category	Test Equipment
Language	English
