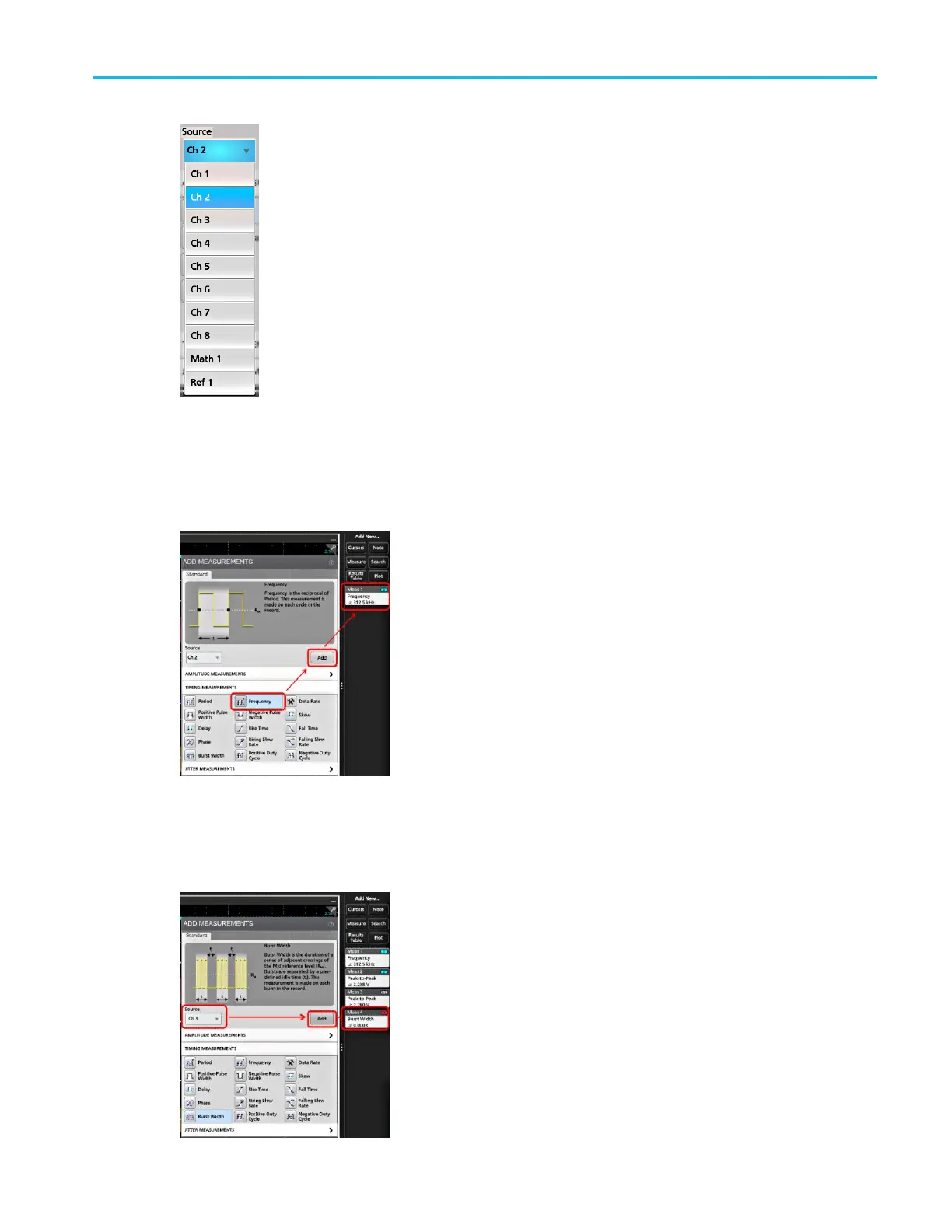

4. Select from the configuration menu panels, such as Amplitude, Timing, and Jitter, to display measurements for those
categories.
5. Select a measurement and tap Add (or double-tap the measurement) to add the measurement to the Results bar. The
measurement badge is added immediately.
6. Select and add other measurements for the current source. Tap the measurement category panels to display and select
other measurements to add.
7. To add measurements for other sources, select a different source, select a measurement, and add the measurement.
Operating basics
MSO54, MSO56, MSO58 Installation and Safety Manual 41
