In Detail
1–18
P6015A Instruction Manual
Low-Frequency Compensation
1. Set the calibration generator to high amplitude output, and set the
period to 1 ms. Set the pulse amplitude to display five divisions.
2. Set the oscilloscope time base to display 200 ms/div.
3. Center the waveform on the screen.
4. Adjust LF COMP (C5) so that the leading corner of the square
wave is level with the trailing corner.
5. Adjust MID 1 (C1) to flatten the area 200 ms from the leading
corner. Refer to Figure 1–6 to determine the zones affected by
this and the following adjustments.
50 ms
Mid 3
200 ms
Mid 1
100 ms
Mid 2

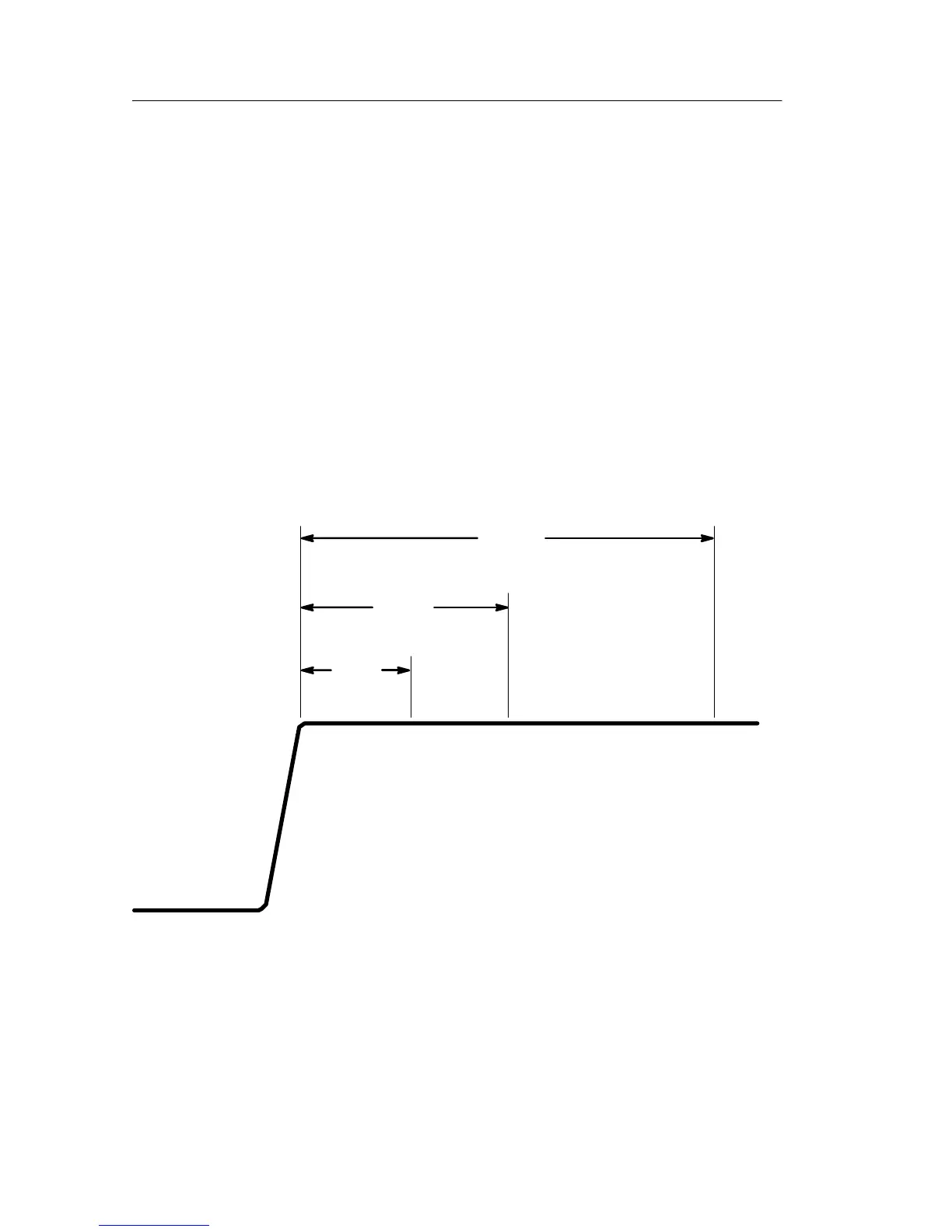

Figure 1–6: Zones Affected by Compensation Adjustments
