Operation

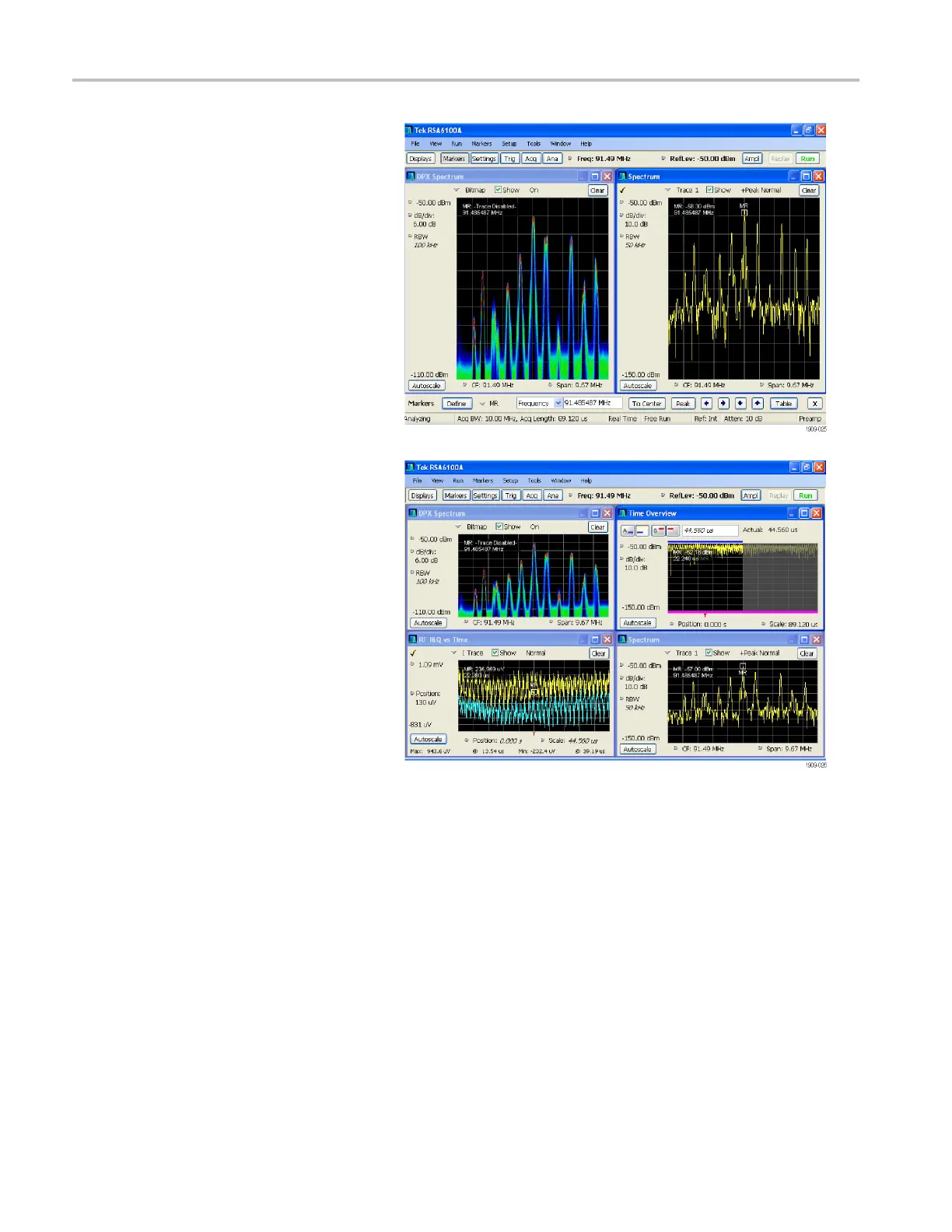

This example sh
ows the window with two
displays, a Spectrum display and a DPX
spectrum display.
When you have m
ore than one display
open, the display with the c heck mark icon
has control over the acquisition hardware.
Togiveadisp
lay p riority over any others,
click its title bar.
This example shows four displays in the
window.
The ac
quisition data source can be a live acquisition or a saved acquisition data file. The sharing of acquisition data between
displays allows you to view the same data in multiple ways. For example, you can display a power versus frequency
(spectrum) display and a spectrogram diagram at the same time. Because the data source is shared among the different
disp
lays, the displays are correlated. That is, a point or set of points within one display is associated with a point or set of
points in every other display in the application window.
