Save an Instrument Setup
The instrument provides 20 nonvolatile memory locations in which to store instrument setup information. All instrument
parameters are stored including measurement settings, trigger levels, mathematical constants, and so on. You can label
each stored setup with a unique identifier (up to seven characters long).
NOTE. Restoring the default instrument setup does not erase the setups stored in memory.
1. S et the instrument to the configuration
that you want to save.
2. Push User Opt > Save/Recall > Setup >
Save Current Setup.

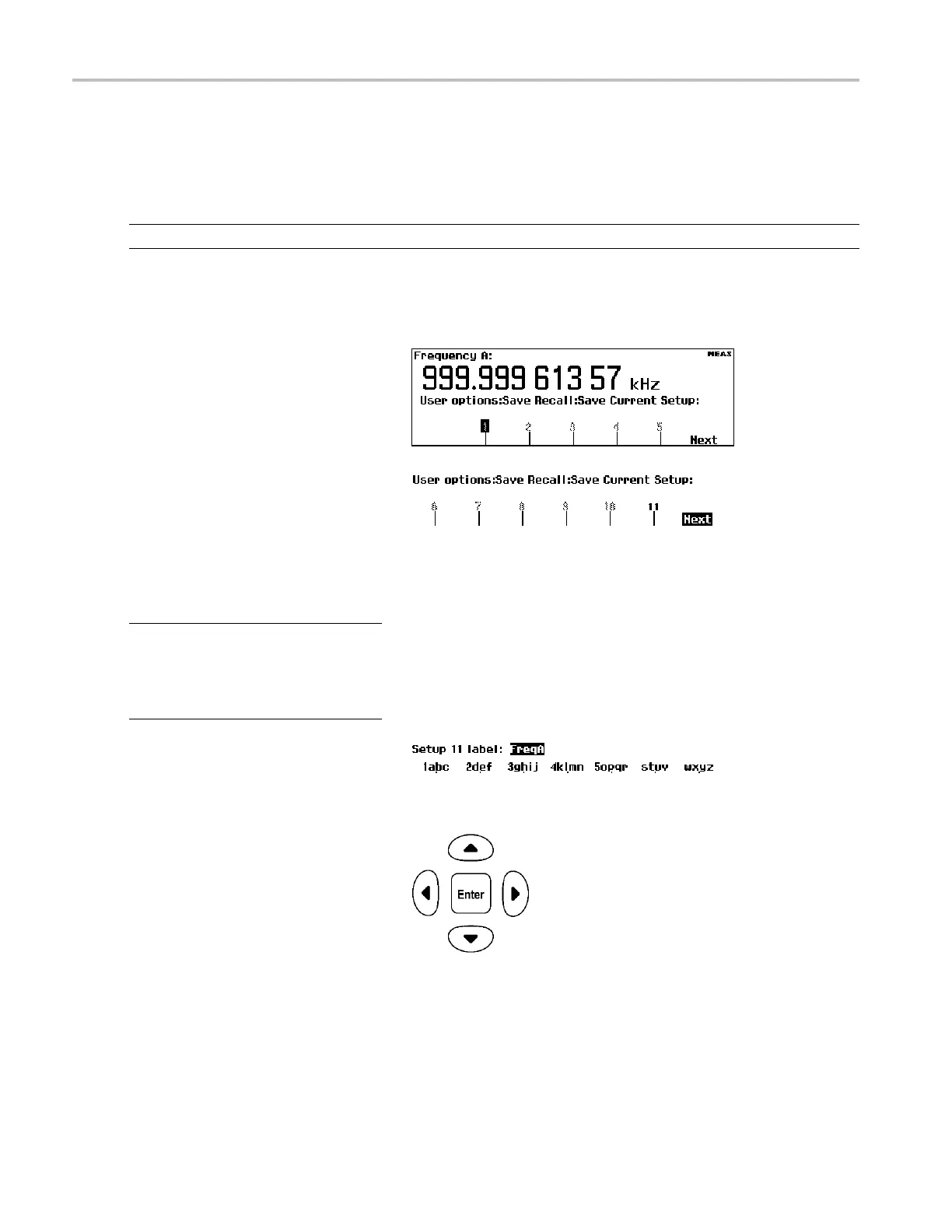

3. Select Next until the instrument displays
an available location (indicated by a
black fo
nt number). Locations that are
empty or unavailable are shown in gray
text.
4. P ush the menu key to select a location
number
.
NOTE.
Setup locations 1 through 10 are
protected by default to prevent accidental
overwriting of their contents. S ee the User
manua
l for information on setup location
protection.
5. Use t
he menu softkeys to enter a label
(up to seven characters long) for the
instrument setup file. The default label is
der
ived from the current measurement.
6. Use the Navigation buttons to backspace
ov
er characters or move the insertion
cursor to a new position.
7. Push Enter or Save/Exit to accept the
label text and save the instrument setup.
