Analyzing signal detail
You have a noisy signal displayed on the oscilloscope and you need to know
more about it. You suspect that the signal contains much more detail than you
can now see in the display.

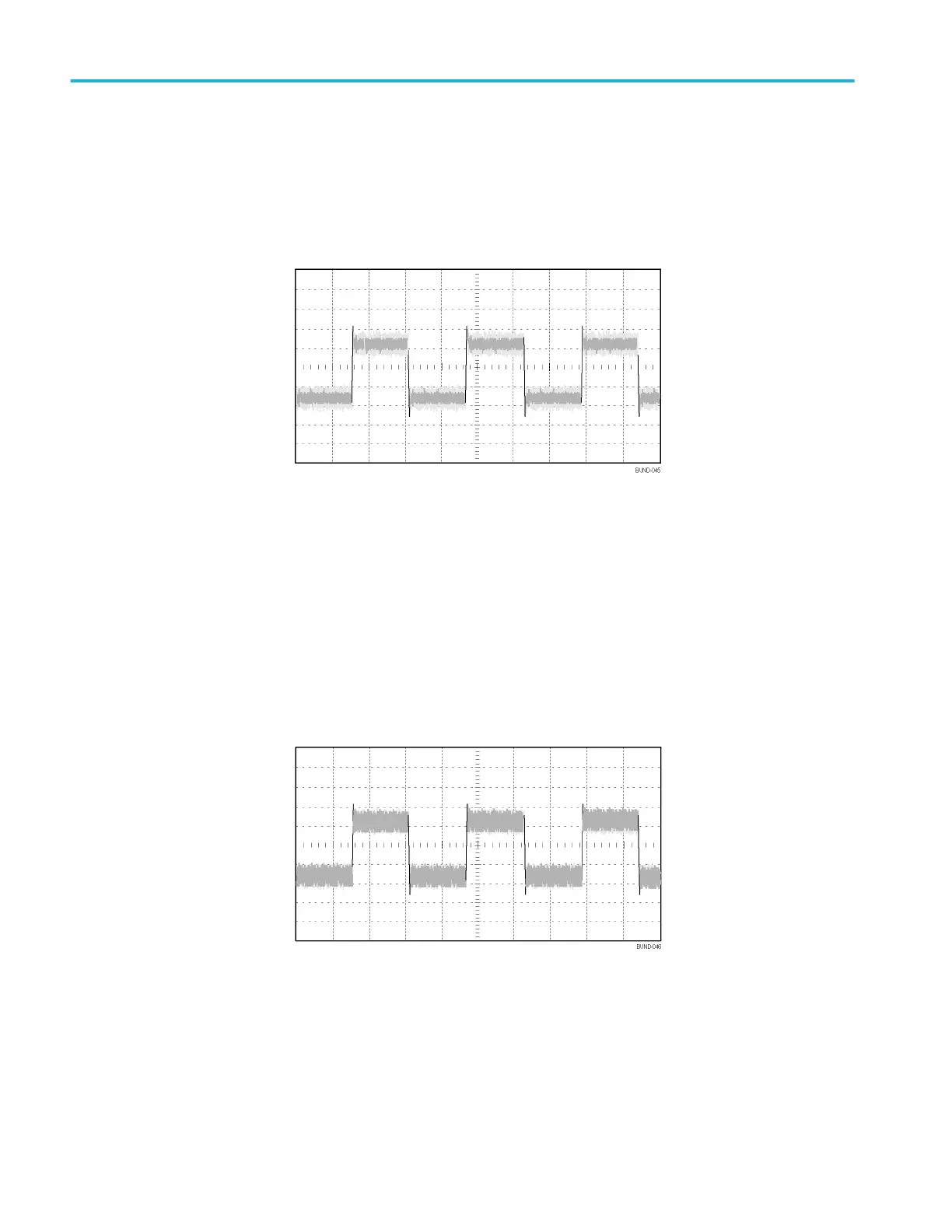

Looking at a noisy signal
The signal appears noisy and you suspect that noise is causing problems in your
circuit. To better analyze the noise, follow these steps:
1. Push the Acquire button to see the Acquire Menu.
2. Push the Peak Detect option button.
Peak detect emphasizes noise spikes and glitches in your signal, especially when
the time base is set to a slow setting.
Application examples
38 TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual
