Tektronix TBS2000B Series Service Manual

AC Power Supply module
troubleshooting flowchart

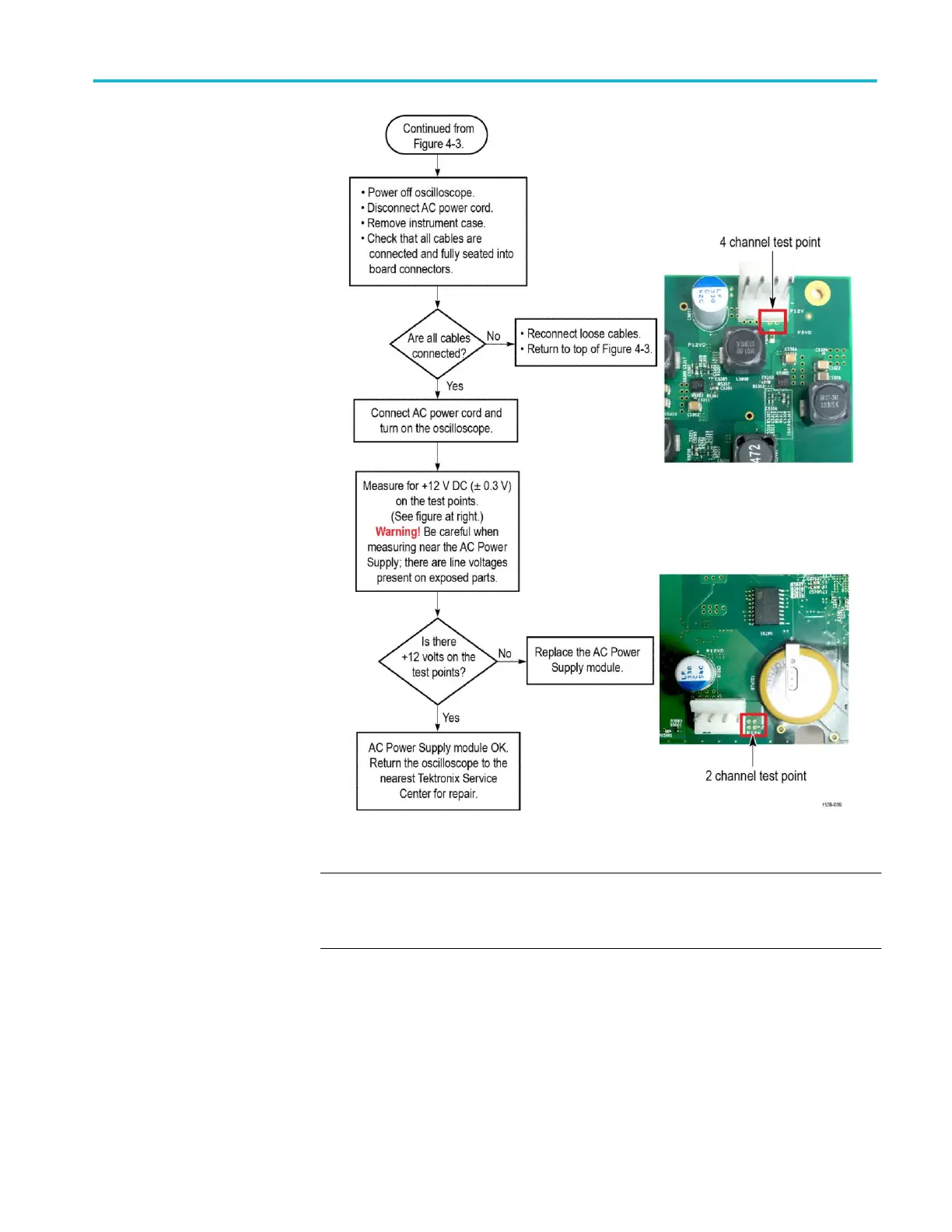

Figure 4: AC Power Supply module troubleshooting
NOTE. Images show the power supply cable disconnected from the main board, to
better show the test point locations. The power cable from the Power Supply must
be connected to the Main board to test the +12 VDC value.
Maintenance
TBS2000B Series Service Manual 17
