Tektronix TDS 420A Service Manual

Removal and Installation Procedures
6-16
TDS 420A, TDS 430A & TDS 460A Service Manual
Handle
Assembly
Front
Foot (2)
Rear EMI
Gasket
Line Cord
Rear Cover
Front Cover
(optional)
ESD Shield
Trim Ring
Menu Flex
Circuit
A06 Front Panel
Assembly
Front Panel
Knobs
Front EMI
Gaskets (4)
Probe Code
Flex Assembly
Cabinet
Menu Button
Mounting
Screw
Front Panel
Shafts
Fuse Cap
Line Fuse
Menu
Elastomer
Disk
Drive

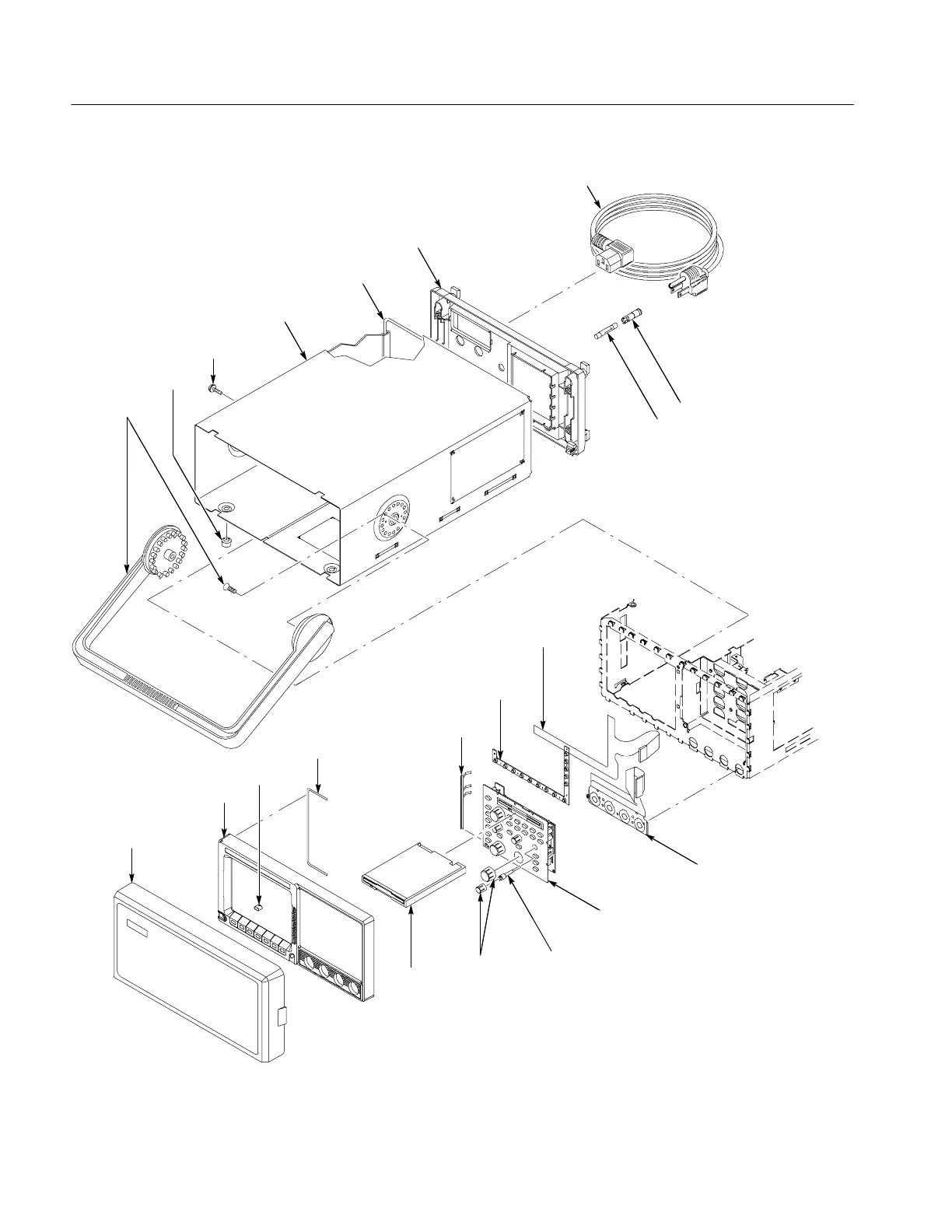

Figure 6- 2: Cabinet and front-panel mounted modules
