Operating Information
TDS3000 Series Service Manual
2–17
1 2
5 437
6

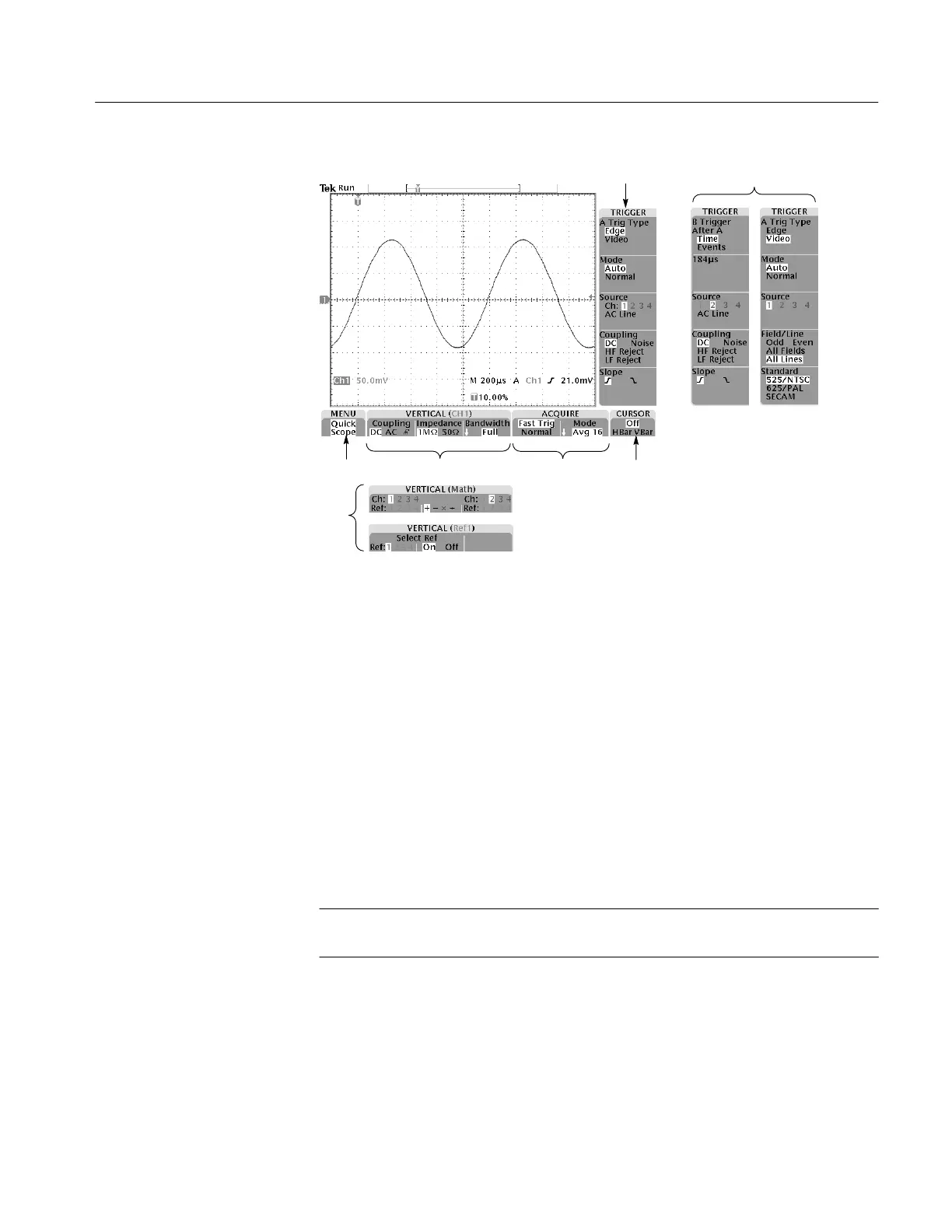

1. Edge Trigger controls. Push these screen buttons to set trigger parameters for edge
trigger.
2. Trigger controls if either B trigger or video trigger is selected.
3. Cursor control. Push this screen button to turn on cursors and select the cursor type.
Push the SELECT button to toggle between the two cursors to select the active cursor.
Use the general purpose knob to move the active cursor.
4. Acquisition controls. Push these screen buttons to set acquisition parameters.
5. Channel vertical controls. Push these screen buttons to set vertical controls for the
selected channel. Use the CH1, CH2, CH3, CH4, MATH, and REF buttons to select the
channel you want to control.
6. Vertical controls if either the math waveform or a reference waveform is selected.
7. Menu. Push this screen button to select a specific QuickMenu display if more than one
is available.
NOTE. Items in the Quick Scope display not mentioned above are also contained
in the regular display. Those items are described on page 2–15.
Other QuickMenus. Some optional application packages include a custom
QuickMenu display. Those QuickMenus contain specific features that are
important for the application.
