TDS3000 Series Service Manual
6. Release the small communication module guide tab by lifting the chassis,
and then remove the communication module guide. See Figure 6–4.
Tab
Communication
module guide

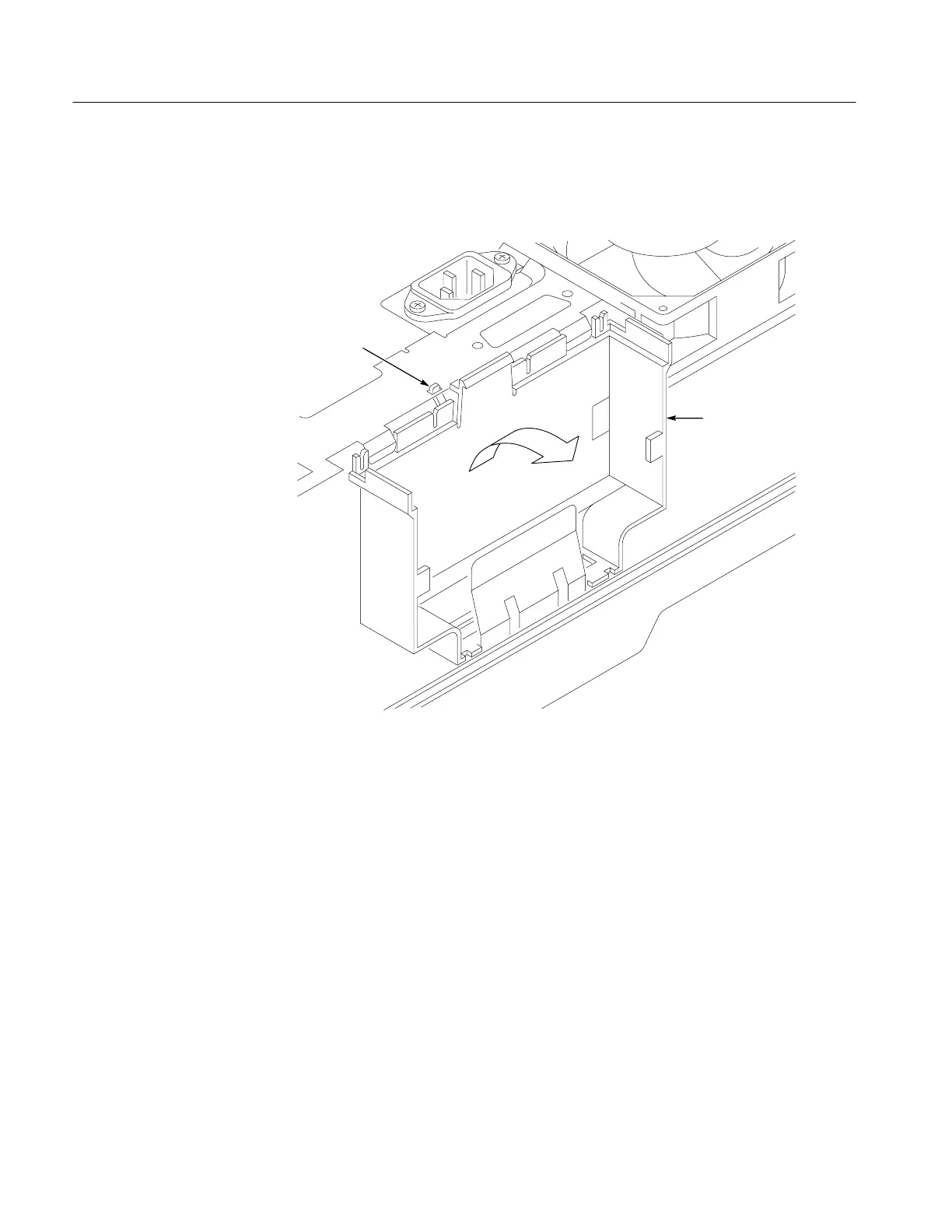

Figure 6–4: Communication module guide
7. Carefully open the connector that captures the disk drive flex cable and
disconnect the flex cable from the disk drive. See Figure 6–5.
8. Lift the disk drive out of the oscilloscope chassis.
