Operating Information
TDS3000C Series S ervice Manual
1-7
Installing an Application Module
CAUTION. To avoid damage to the oscilloscope or application module, observe
the ESD precautions described on page vii.
Optional application packages are available to extend the capability of your
oscilloscope. You can install up to four application modules at one time.
Application modules can go into the two slots with windows in the upper right
corner of the front panel. Two additional slots are directly behind the two you
can see.

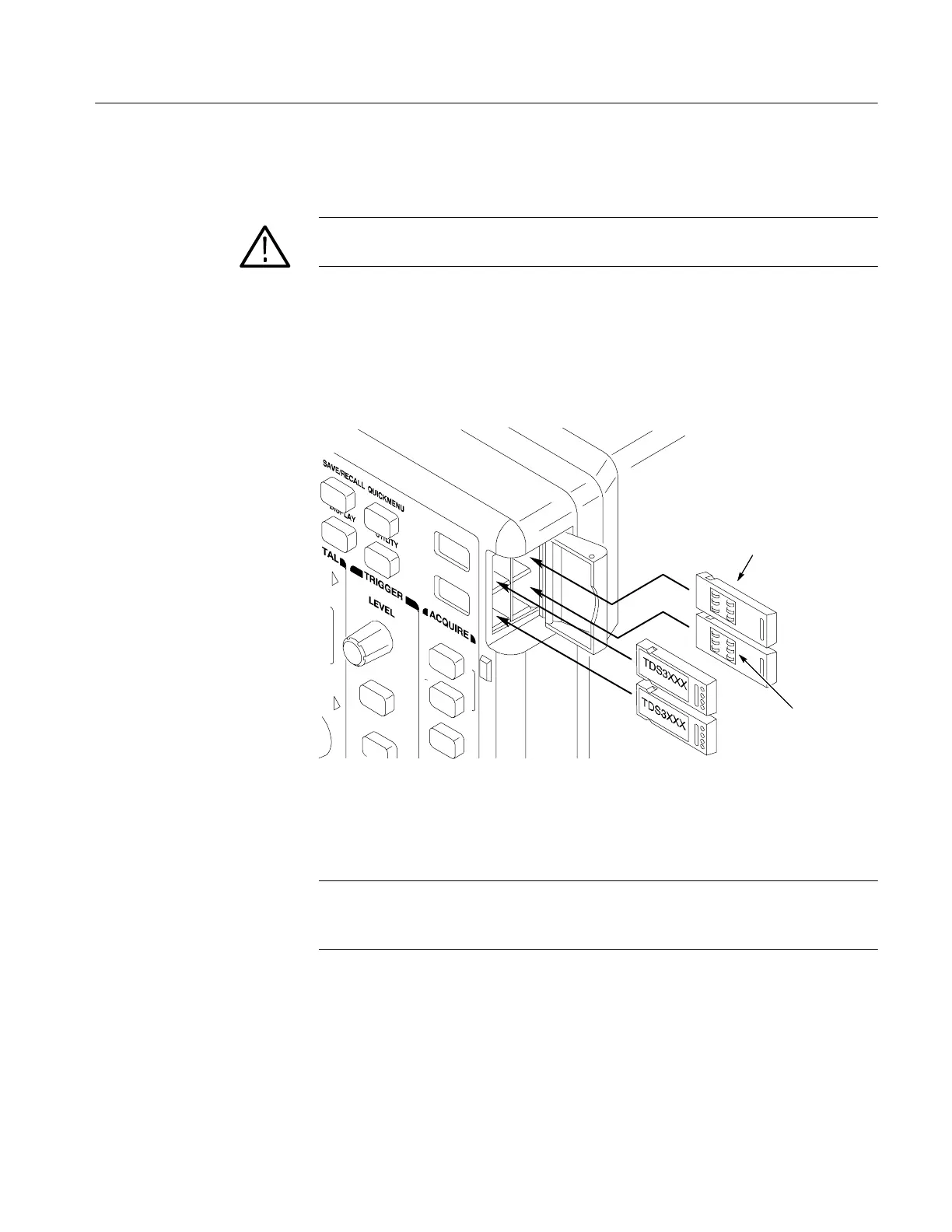

Application
modules
Contacts
Refer to the TDS3000, TDS3000B, and TDS3000C Series Application Module
Installation manual that came with your application module for instructions on
installing and testing an application module.
NOTE. If you remove an application module, the functions provided by the
application module become unavailable. You can reinstall the module to restore
the functions.
