Operating Information
1-8
TDS3000C Series S ervice Manual

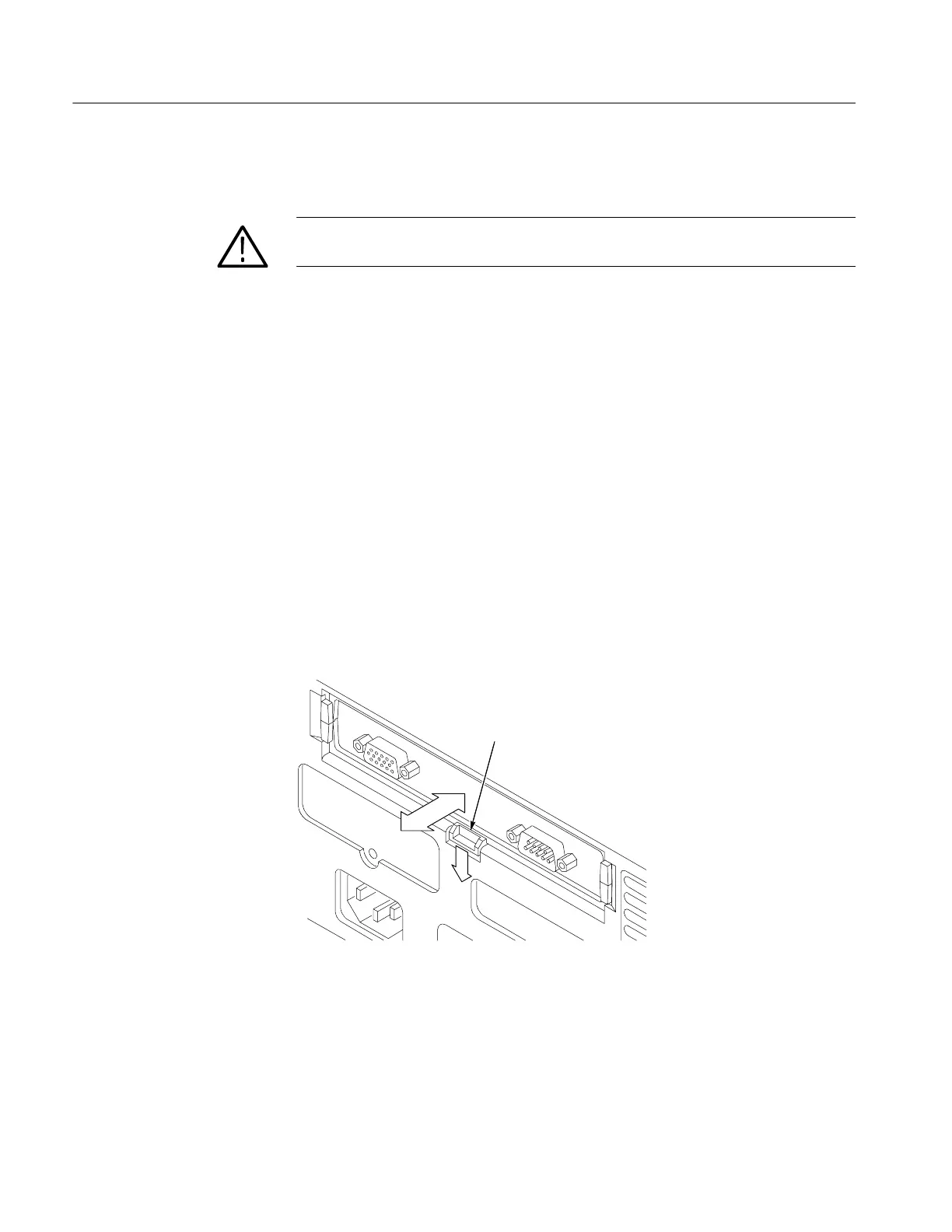

Installing a Communication Module
CAUTION. To avoid damage to the oscilloscope or communication module,
observe the ESD precautions described on page vii.
To install the optional communication module, do these steps:
1. Turn the oscilloscope power off.
2. Press down on the latching tab to remove the blank cover.
3. Slide the communication module into the compartment until the internal
connectors are seated and the latching tab locks.
4. Turn power on. The communication module is now ready for your use.
To remove a communication module, do these steps:
1. Turn the oscilloscope power off.
2. Press down on the latching tab and then use a small screwdriver to alternate-
ly pry out the sides of the communication module.
3. Slide out the communication module and store it in an ESD-shielded bag.
Install the blank cover if no other communication module is to be installed.
Latching tab
