Operating Information
TDS3000C Series S ervice Manual
1-17
1 2
5 437
6

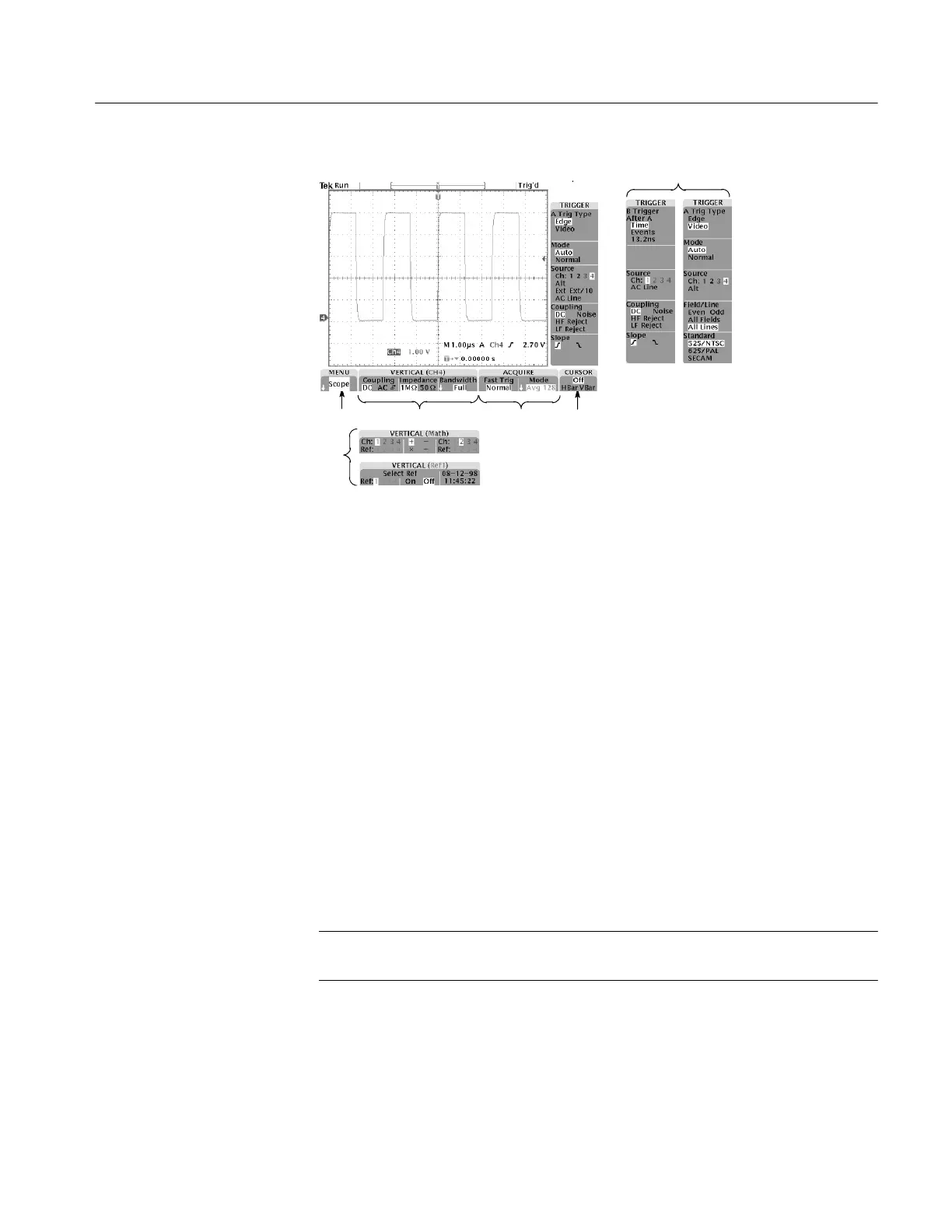

1. Edge Trigger controls. Push these screen buttons to set trigger parameters for
edge trigger.
2. Trigger controls if either B trigger or video trigger is selected.
3. Cursor control. Push this screen button to turn on cursors and select the
cursor type. Push the SELECT button to toggle between the two cursors to
select the active cursor. Use the general purpose knob to move the active
cursor.
4. Acquisition controls. Push these screen buttons to set acquisition parameters.
5. Channel vertical controls. Push these screen buttons to set vertical controls
for the selected channel. Use the CH1, CH2, CH3, CH4, MATH, and REF
buttons to select the channel you want to control.
6. Vertical controls if either the math waveform or a reference waveform is
selected.
7. Menu. Push this screen button to select a specific QuickMenu display if
more than one is available.
NOTE. Items in the Scope QuickMenu display not mentioned above are also
contained in the regular display. Those items are described on page 1--15.
Other QuickMenus. Some optional application packages include a custom
QuickMenu display. Those QuickMenus contain specific features that are
important for the application.
