Tektronix TDS3032B Service Manual

Maintenance
6-12
TDS3000B Series Service Manual
6. To remove the communication module guide, gently lift the chassis t o
release the small communication module guide tab, move the module guide
slightly away from the chassis, and then lift the module guide away from the
oscilloscope. See Figure 6--4. Note that there are alignment pins along the
front edge of the module guide that insert into the main board when you
reinstall the module guide.
Tab
Communication
module guide
Chassis

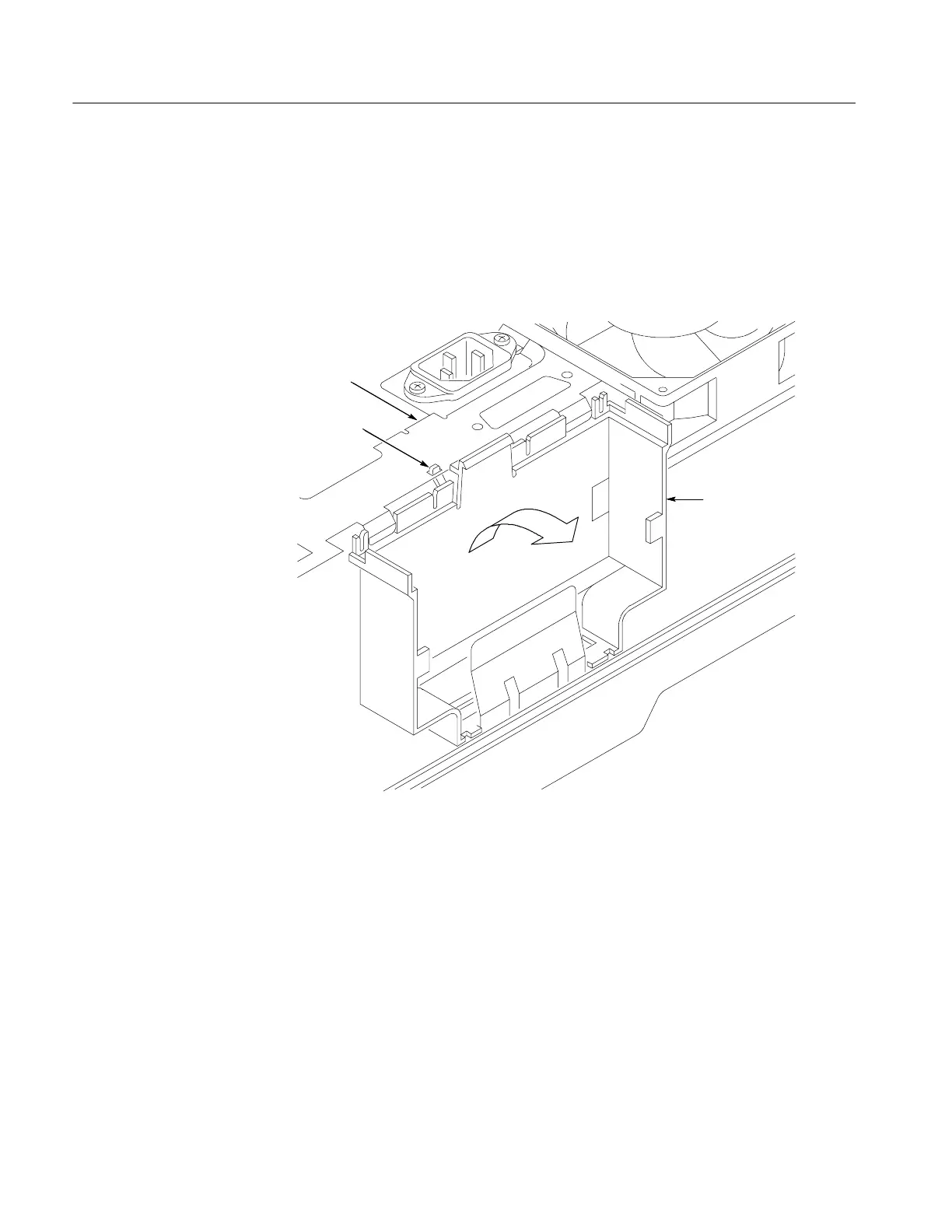

Figure 6- 4: Communication module guide
