Tektronix TDS3032C

Application Examples
Using Delay

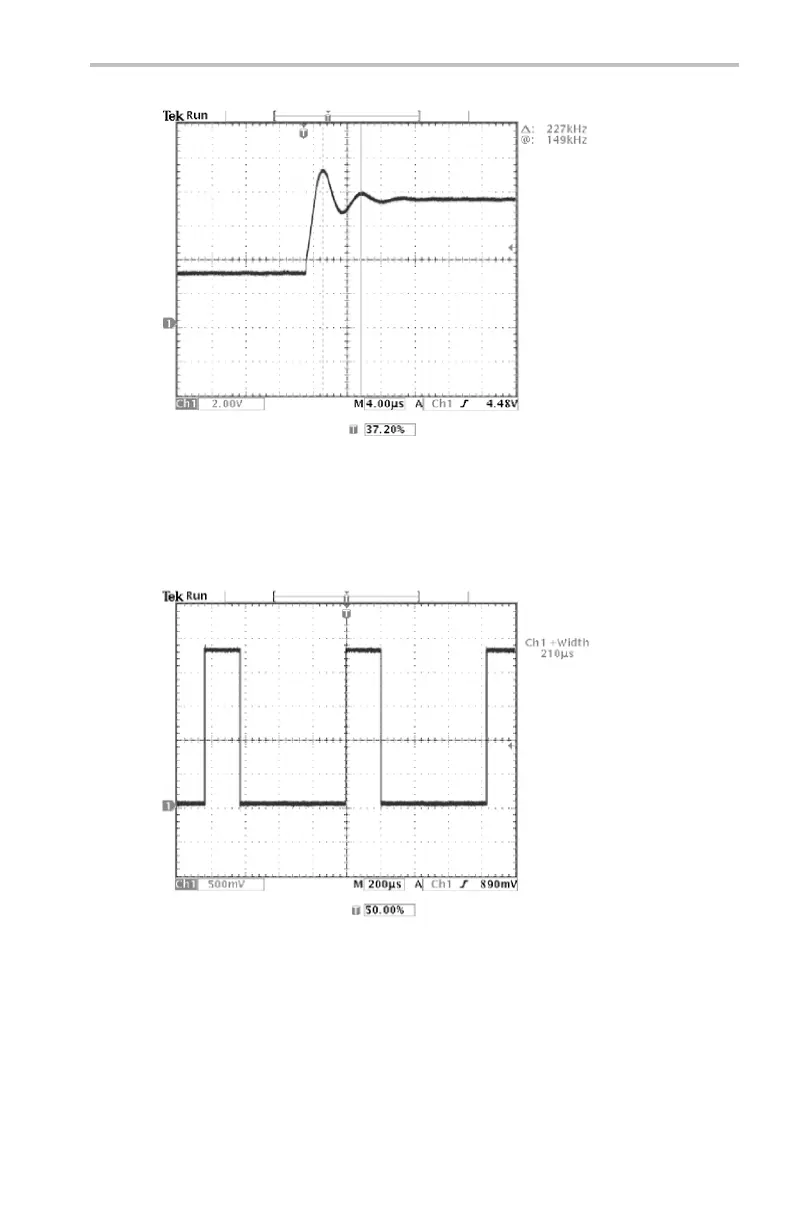

You are analyzing a p
ulse waveform and use the + Width measurement
to measure the waveform pulse w idth. You notice that the measurement
is n ot stable, which implies th a t there i s jitter in the pulse width.
TDS3000C Series O scilloscope User Manual 41
