Getting Started

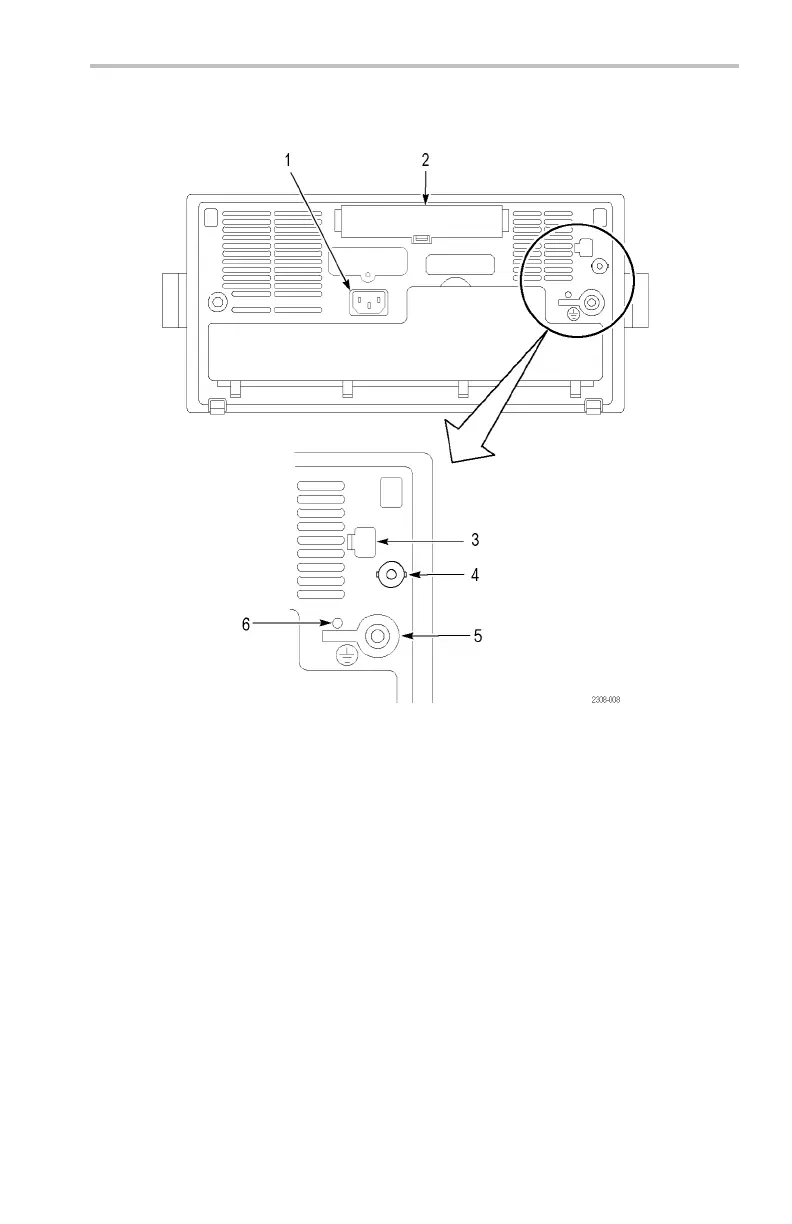

Rear-Panel Connectors
1. Power inp ut. Attach to an AC power line with integral safety
ground.
2. Communication Module compartment. Install the optio nal
communication m odule.
3. Ethernet port. Connects the oscilloscope to a 10BaseT local area
network.
4. Ext Trig. External trigger input with TekProbe interface
(four-channel mod els on ly). External trigger input specifications
are in Appendix A.
TDS3000C Series O scilloscope User Manual 29
