Removal and Installation Procedures
6-- 22
TDS7104 & TDS7054 Service Manual
Screwdriver
Black stripe
toward connector

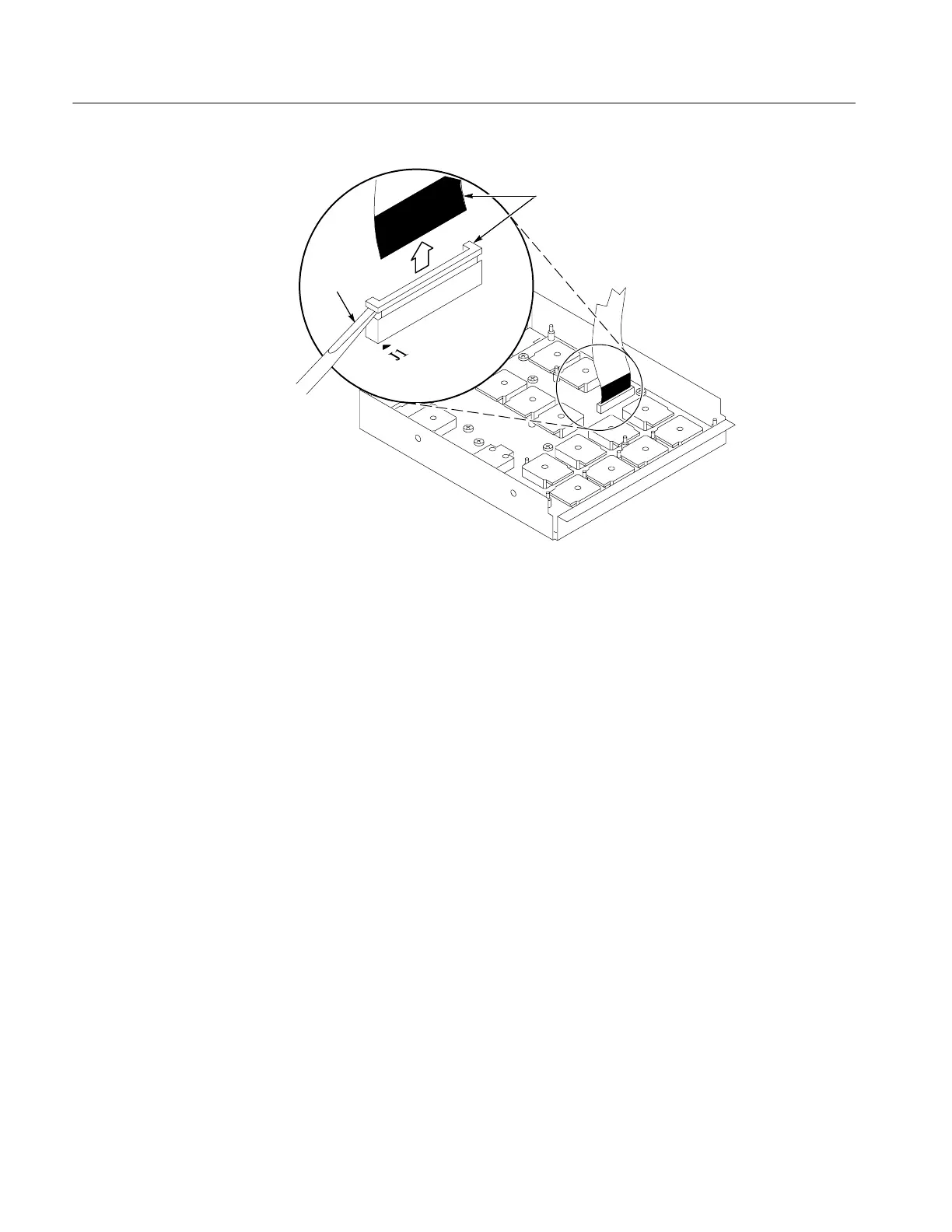

Figure 6--10: J1 flex cable connector removal
1. Locate module to be removed: Locate the Front Panel assembly Figure 6--9,
on page 6--21. Additional modules to be Removed:
H Front Panel Knobs
H Trim (front panel)
H Front Panel Assembly
2. Remove the Front Panel board: See Figure 6--11, on page 6--23.
a. Remove the eight T-15 Torx screws that secure the Front panel board to
the Front panel assembly.
b. Pry the board up off the alignment studs. Place a flat bladed screwdriver
in the pry point access holes to pry the board up from the assembly.
c. Remove the board from the assembly.
3. Reinstallation: Do in reverse steps a through c to reinstall the front panel
board.
Front Panel Board
