Tektronix TDS7104

Removal and Installation Procedures
TDS7104 & TDS7054 Service Manual
6-- 35
a. Disconnect the fan from processor/display board: Disconnect the two fan
power cables J130 and J170 located on the processor board.
b. Remove the two T-15 Torx screws securing the fan assembly to the top
main chassis.
c. Lift the fan assembly up and out from the chassis.
4. Reinstallation: Do in reverse steps a through c to reinstall the fan assembly.
CAUTION. Take care when handling the fan assembly, the fan blades are brittle
and can be easily damaged.
Disconnect
from J130
Disconnect
from J170

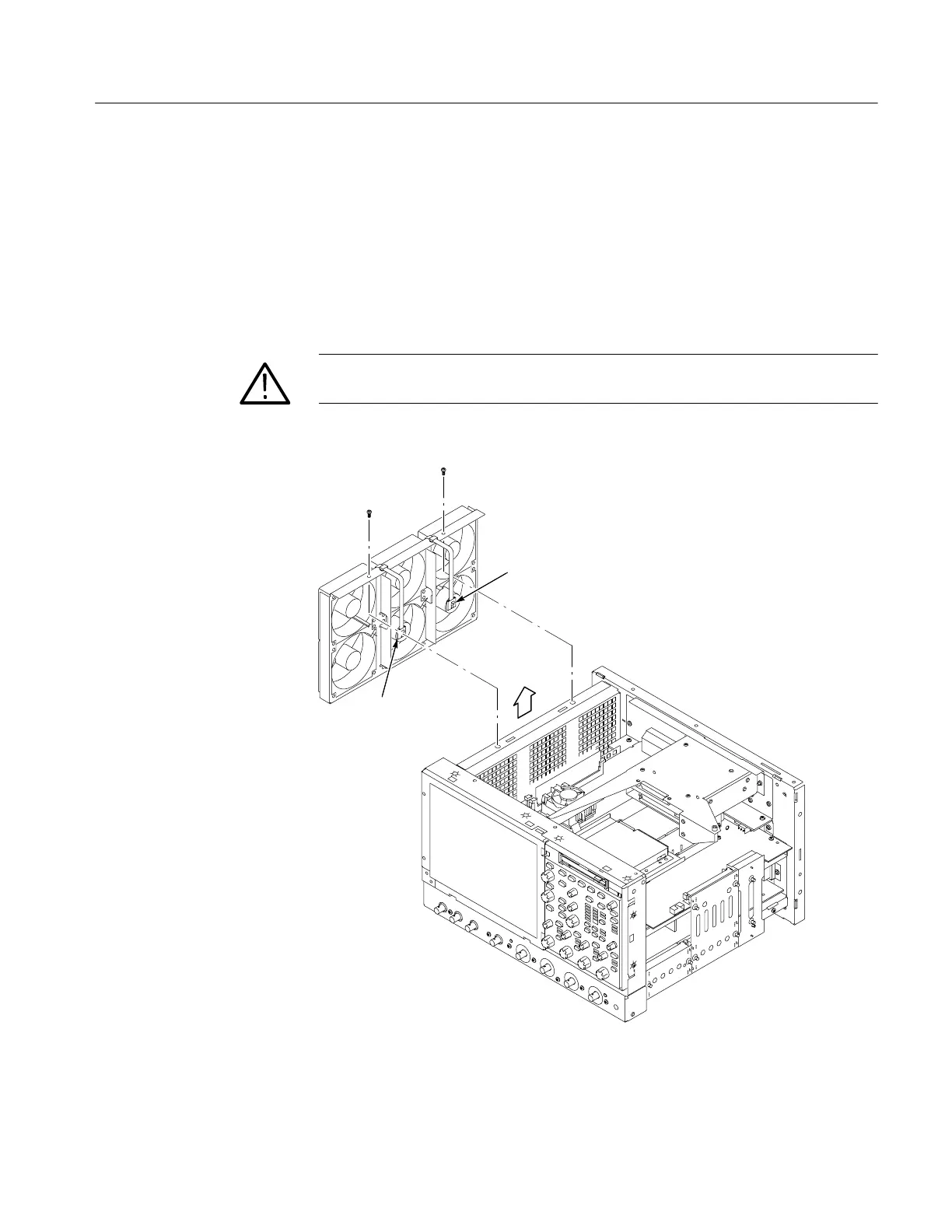

Figure 6--21: Fan assembly removal
