Installation Instructions
6. When the shelf i
s pushed all the way in, a ttach the safety stop to the shelf
with the fourth 6-32 screw.

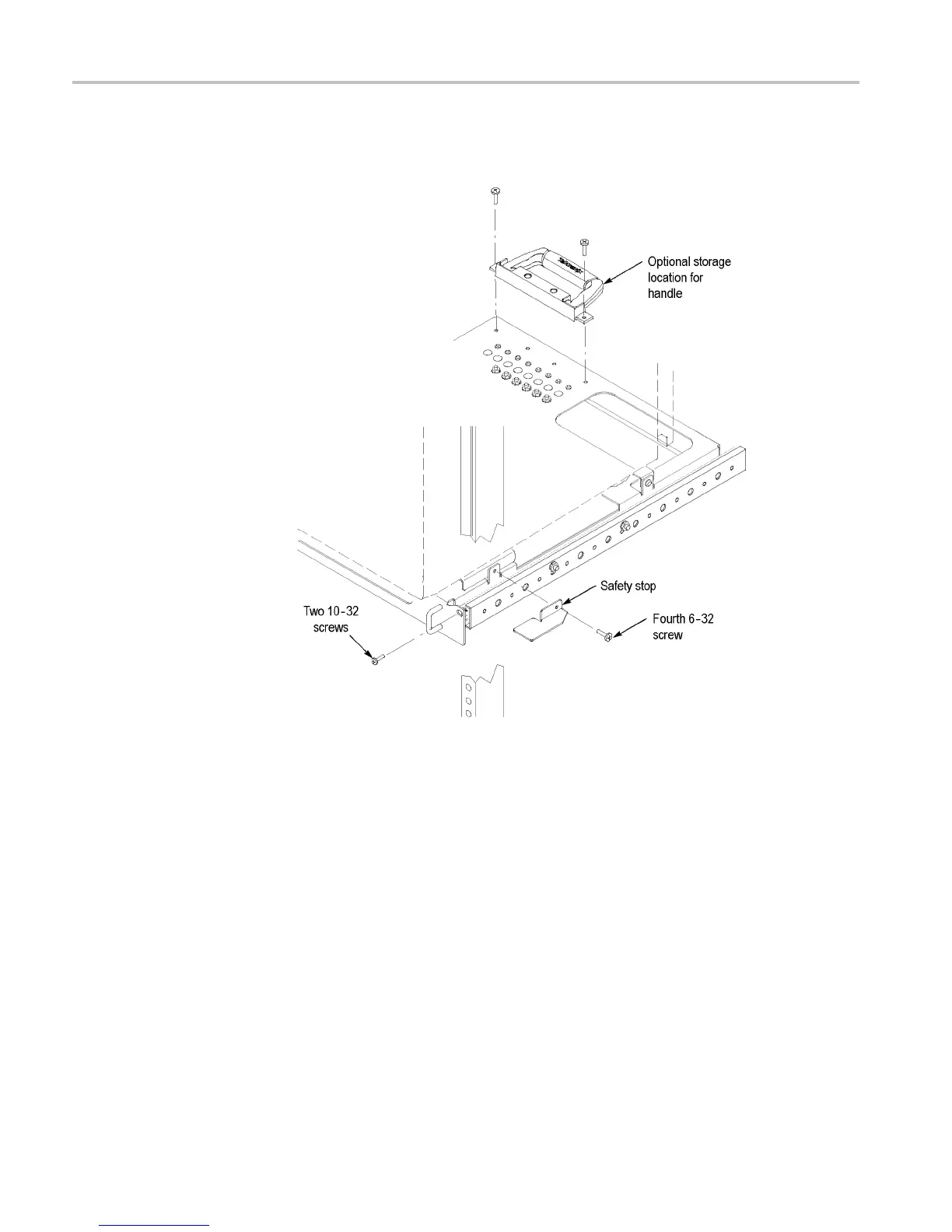

Figure 15: Mount the safety stop to the shelf
7. Attach the shelf to the front rails using two 10-32 screws (one each side).
8. If you removed the instrument handle in step 5, mount the handle on the
rear of the shelf.
9. If necessary, reattach the power cord to the instrument by turning the
mounting post 1/4-turn counterclockwise.
10. Connect the power cord to the instrument receptacle and the A C source in
the instrument rack.
20 TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions
