Tektronix TLA7000 Series User Manual

Getting Acquain
ted with Your Instrument

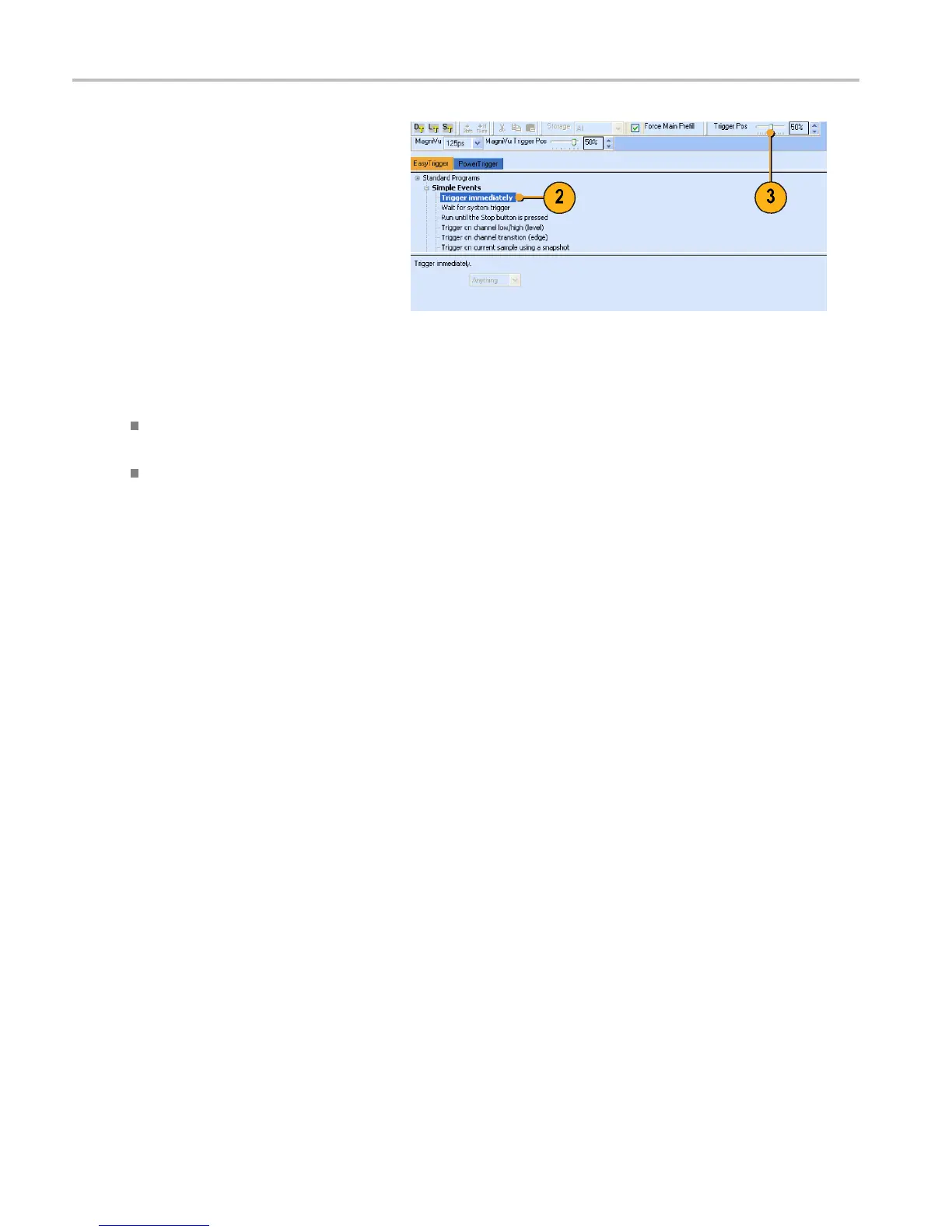

2. In the Easy Trig
ger tab, select a trigger
program from the list. For example,
select Trigger immediately to trigger
the instrumen
t on any data.
Use the area below the trigger program
list to enter more details for the trigger
programs, if
needed.
3. Click and dra
gtheTrigger Pos indicator
to the point in memory where you want
the instrument to trigger. The default
selection i
s 50% .
Quick Tips
After y ou have acquired data, use the Tabbed Trigger window to define simple trigger programs without having to close
the Waveform or Listing window.
Use EasyTrigger to de fine the trigger program for most applications; use PowerTrigger to customize the trigger program
for specific needs.
14 TLA Q uick Start User M anual
