Analyzing Data
Analyzing Data
Your instrument has several tools for analyzing data, such as zooming data, measuring data, and viewing data with MagniVu
high-resolution timing. This section provides concepts and procedures for analyzing data in the Waveform window. Some of
these features also apply to the Listing w indow; refer to the online help for more details.
Zooming Data

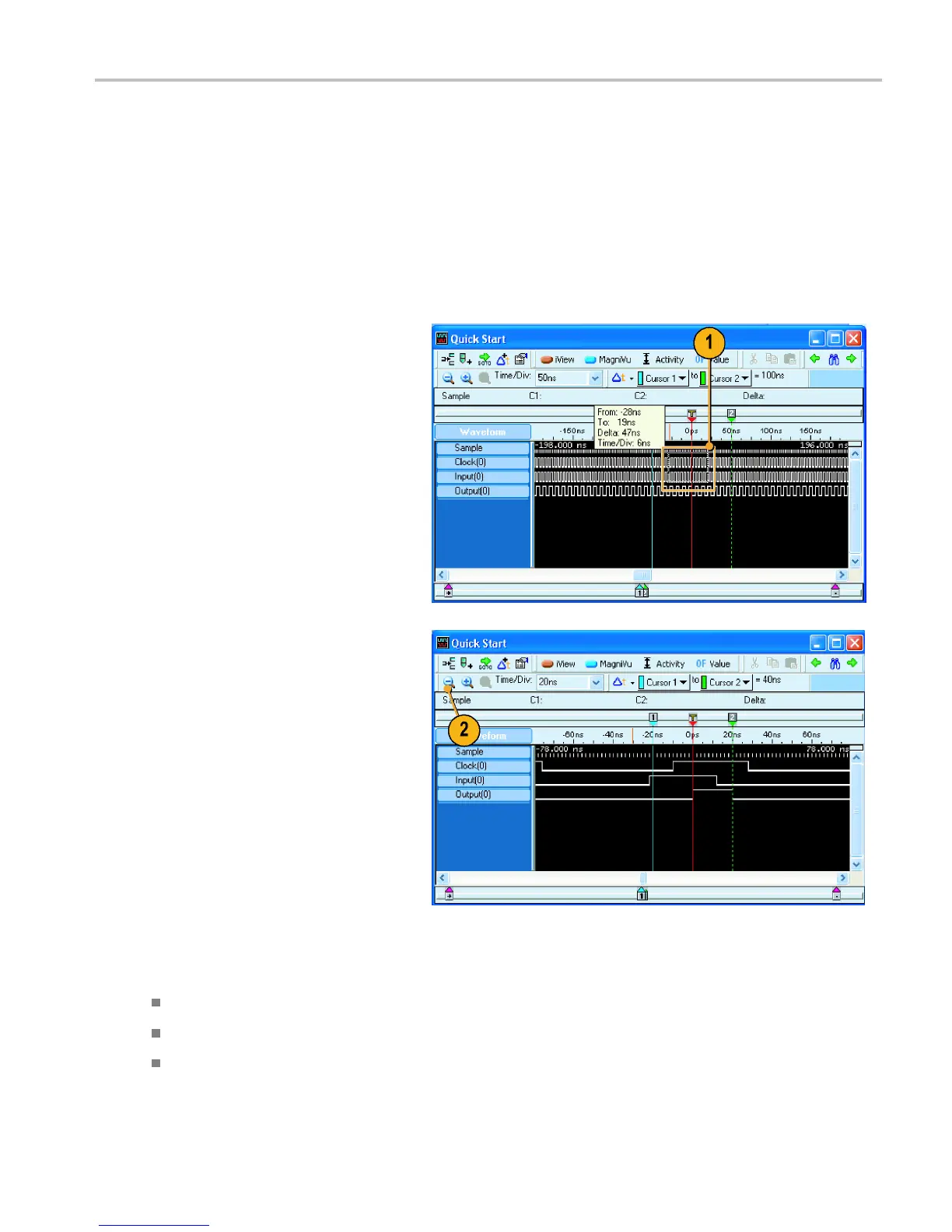

To zoom data i n the Waveform window:
1. Click and drag from left to right over the
area you want to zoom.
2. Click the Zoom In button a few times to
zoom the timing data samples.
Quick Tips
Click and drag from the right to the left to zoom to the previous selection.
Use the Zoom In and the Zoom Out buttons in the toolbar as an alternative method of zooming data.
Rearrange the toolbars, as needed, to access command buttons, if the command buttons appear off-screen.
