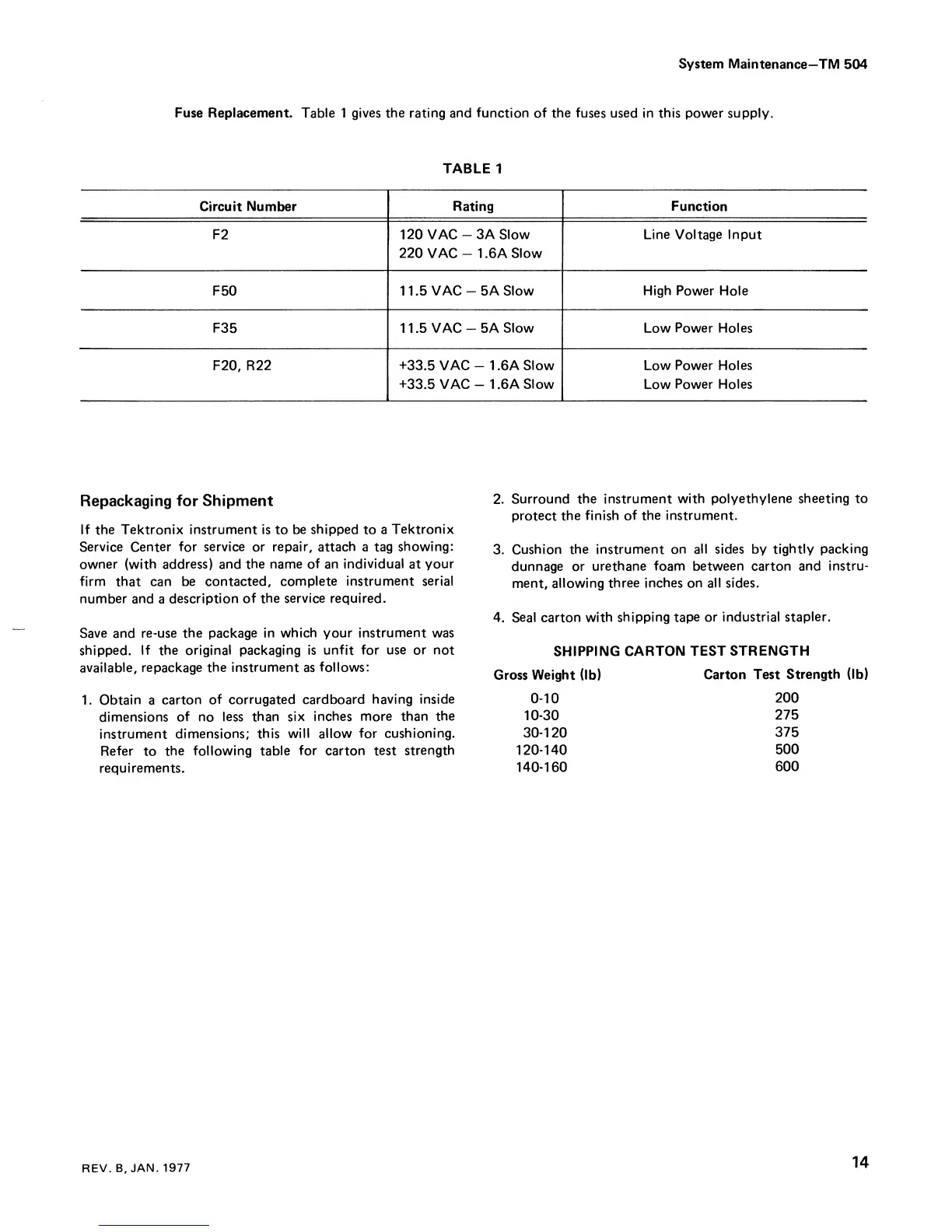

Tektronix TM 504 User Manual

System
Maintenance—
TM
504
Fuse Replacement.
Table
1
gives the
rating and
function
of
the
fuses used in this power supply.
TABLE
1
Circuit
Number Rating Function
F2
120 VAC-
3A
Slow
220 VAC
-
1.6A
Slow
Line
Voltage Input
F50 11.5
VAC- 5A Slow
High
Power Hole
F35
11.5 VAC-5A
Slow
Low
Power
Holes
F20, R22
+33.5 VAC
-
1.6A
Slow
Low
Power Holes
+33.5
VAC
-
1.6A
Slow
Low
Power Holes
Repackaging
for Shipment
If
the Tektronix
instrument is to
be shipped
to a
Tektronix
Service Center
for service or repair, attach
a tag
showing:
owner (with address) and
the name of an individual
at
your
firm
that can
be contacted,
complete
instrument serial
number and
a
description
of the
service
required.
Save and
re-use the package
In
which
your
instrument
was
shipped.
If the original packaging is
unfit for
use
or not
available, repackage
the instrument
as
follows:
1.
Obtain
a
carton
of corrugated cardboard
having inside
dimensions
of
no
less
than six
inches more
than
the
instrument
dimensions; this
will
allow
for
cushioning.
Refer
to
the
following table
for
carton
test
strength
requirements.
2.
Surround the
instrument with
polyethylene
sheeting
to
protect
the
finish of
the instrument.
3.
Cushion
the instrument
on
all
sides by
tightly packing
dunnage
or
urethane foam
between
carton
and instru-
ment, allowing
three inches on all sides.
4.
Seal
carton
with
shipping tape
or
industrial stapler.
SHIPPING
CARTON
TEST STRENGTH
Gross
Weight (lb)
Carton Test
Strength
(lb)
0-10 200
10-30 275
30-120
375
120-140
500
140-160
600
REV.
B,
JAN.
1977
14
