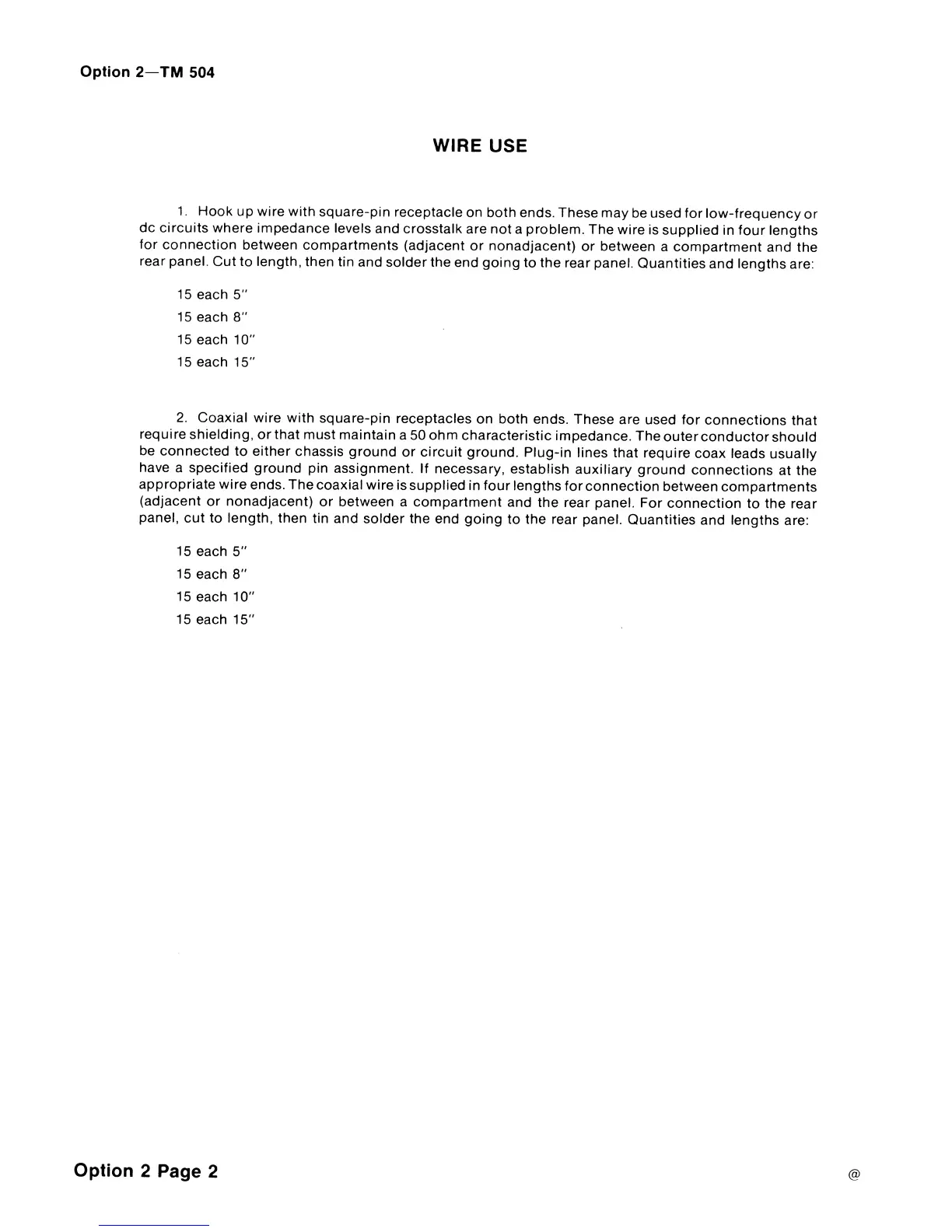

Tektronix TM 504 User Manual

Option
2—
TM
504
WIRE
USE
1 .
Hook up
wire with
square-pin
receptacle
on both
ends.
These may
be used
for
low-frequency
or
dc circuits
where
impedance levels
and
crosstalk
are
not a
problem.
The
wire is
supplied
in four lengths
for
connection
between
compartments
(adjacent
or
nonadjacent)
or between
a
compartment
and
the
rear
panel.
Cut
to
length,
then
tin
and
solder the
end
going
to
the
rear
panel.
Quantities
and lengths
are:
15
each
5"
15
each
8"
15 each
10”
15 each
15”
2.
Coaxial
wire with
square-pin
receptacles
on
both
ends.
These
are
used
for
connections
that
require
shielding,
orthat
must
maintain
a 50 ohm
characteristic
impedance.
The
outerconductor
should
be
connected
to
either
chassis
ground
or circuit
ground.
Plug-in
lines
that
require
coax
leads
usually
have
a specified
ground pin
assignment.
If
necessary,
establish
auxiliary
ground
connections
at the
appropriate
wire
ends. The
coaxial wire
is supplied
In
four lengths
for
connection
between
compartments
(adjacent
or
nonadjacent)
or
between
a
compartment
and
the
rear
panel.
For
connection
to
the
rear
panel,
cut
to length, then
tin
and solder the
end
going
to the
rear panel.
Quantities
and lengths
are:
15
each
5”
15
each
8”
15
each
10”
15
each
15”
Option
2
Page
2
