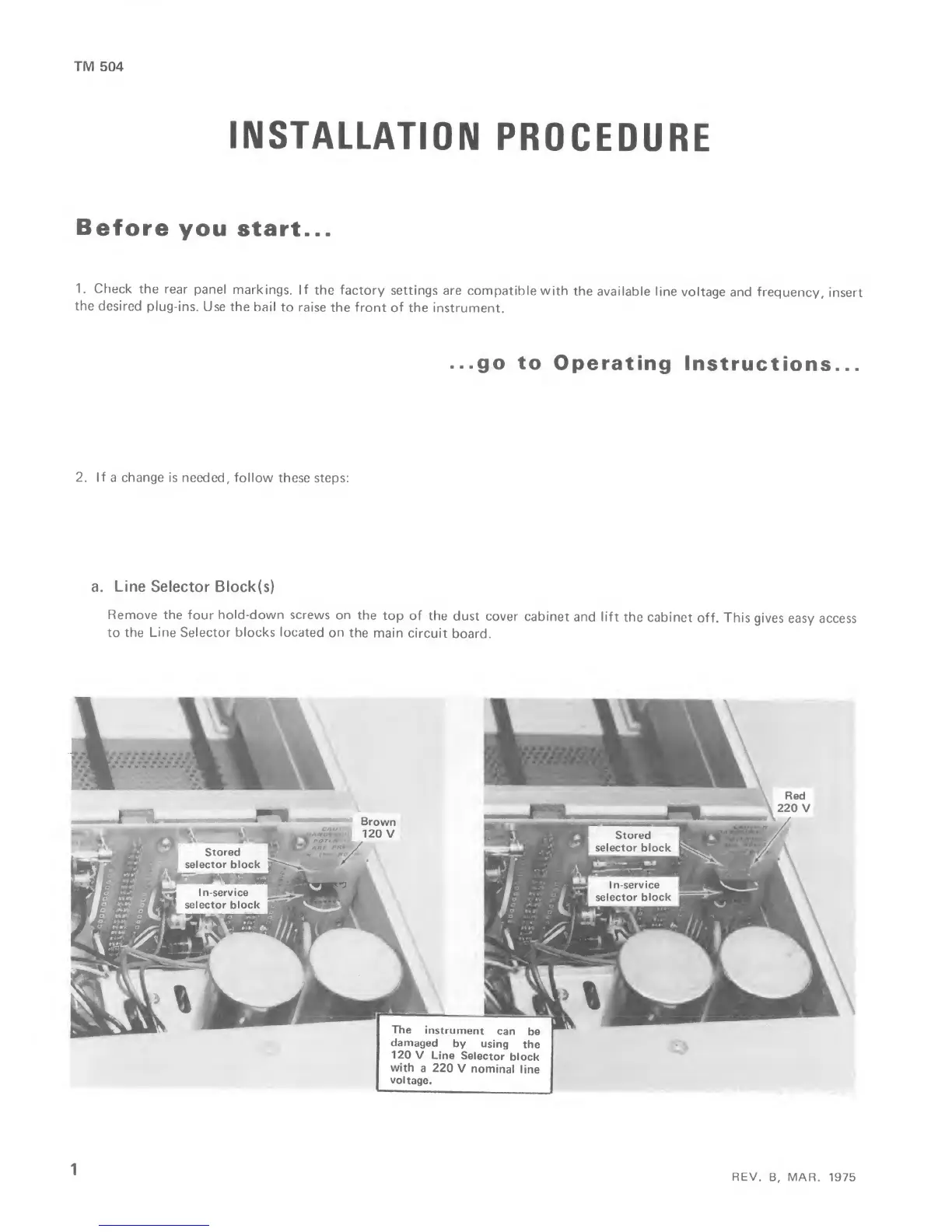

INSTALLATION
PROCEDURE
Before
you start...
1. Check
the
rear
panel
markings.
If
the factory
settings are
compatible
with
the
available
line
voltage
and
frequency,
insert
the
desired
plug-ins.
Use the
bail
to
raise
the front of
the
instrument.
...go
to
Operating
Instructions...
2.
If
a
change
is
needed, follow
these steps:
a.
Line
Selector Block(s)
Remove the
four
hold-down screws
on
the
top
of the
dust cover
cabinet
and lift
the
cabinet
off. This
gives
easy access
to
the Line Selector blocks located
on
the
main
circuit
board.
Stored
selector block
Stored
selector block
In-service
selector
block
In-service
selector block
Brown
\ g
The
instrument
can
be
damaged
by
using
the
120
V
Line
Selector
block
with
a 220
V
nominal
line
voltage.
1
REV.
B, MAR. 1975
