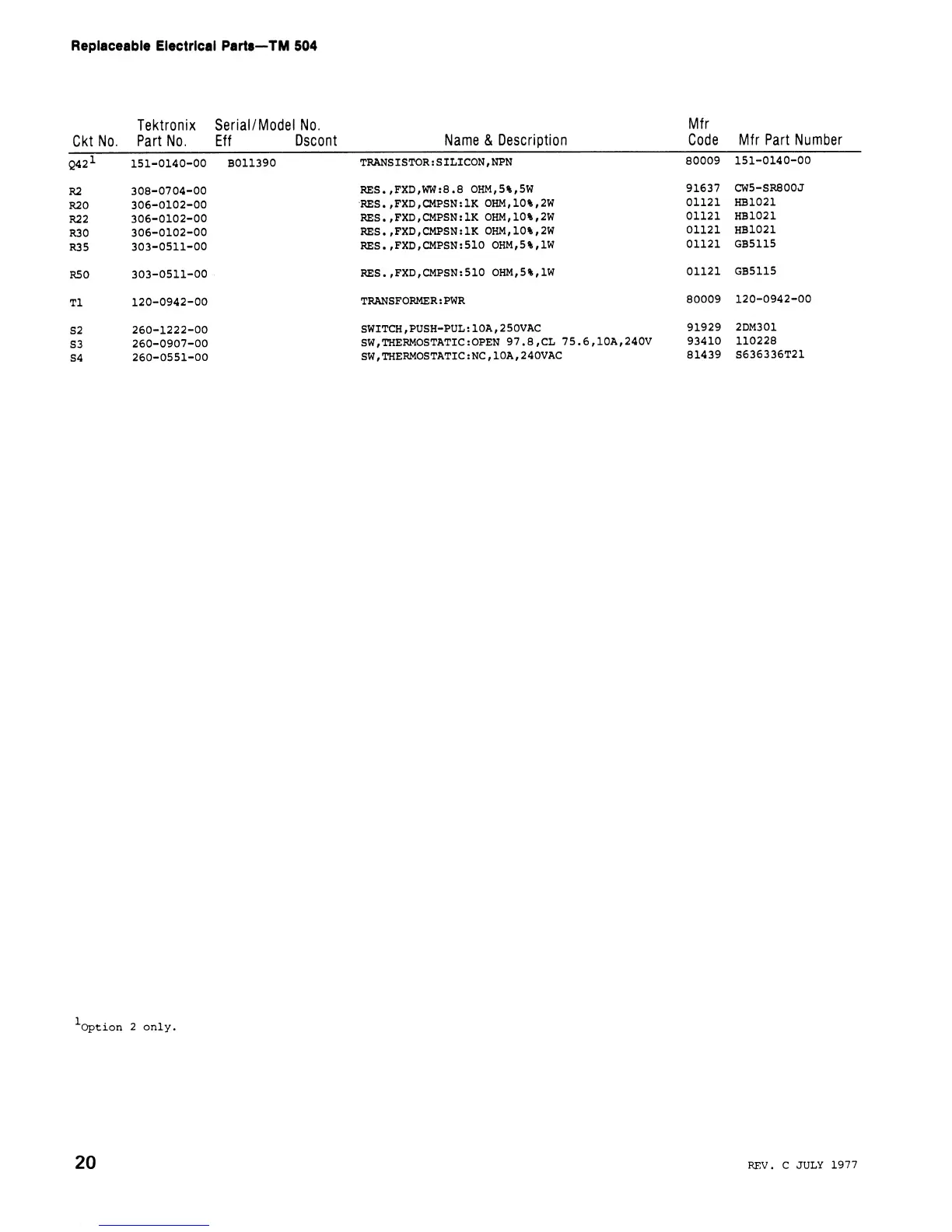

Replaceable
Electrical Parts—TM 504
Ckt No.
Tektronix
Part
No.
Serial/Model
No.
Eff
Dscont
Name & Description
Mfr
Code
Mfr Part
Number
Q42^
151-0140-00
B011390
TRANSISTOR
: S
ILICON ,
NPN
80009
151-0140-00
R2
308-0704-00
RES
.
,FXD,WW:8.8
OHM,5%,5W
91637
CW5-SR800J
R20
306-0102-00
RES
.
,FXD,CMPSN:1K
OHM,10%,2W
01121 HB1021
R22
306-0102-00
RES
.
,FXD,CMPSN:1K
OHM,10%,2W
01121 HB1021
R30
306-0102-00
RES
.
,FXD,CMPSN:1K
OHM,10%,2W
01121 HB1021
R35
303-0511-00
RES
.
,FXD,CMPSN:510
0HM,5%,1W
01121 GB5115
R50
303-0511-00
RES
.
,FXD,CMPSN:510
0HM,5%,1W
01121
GB5115
T1
120-0942-00
TRANSFORMER
: PWR
80009
120-0942-00
S2
260-1222-00
SWITCH
, PUSH-PUL :
lOA , 2
50VAC
91929
2DM301
S3
260-0907-00
SW,
THERMOSTATIC:
OPEN
97. 8, CL
75 .
6
,
lOA,
240V
93410
110228
S4
260-0551-00
SW,
THERMOSTATIC
:NC ,
10A,240VAC
81439
S636336T21
^Option
2
only.
20
KEV. C
JULY
1977
