Tektronix TM 504 User Manual

TEKTRONIX®
committed
to
technical excellence

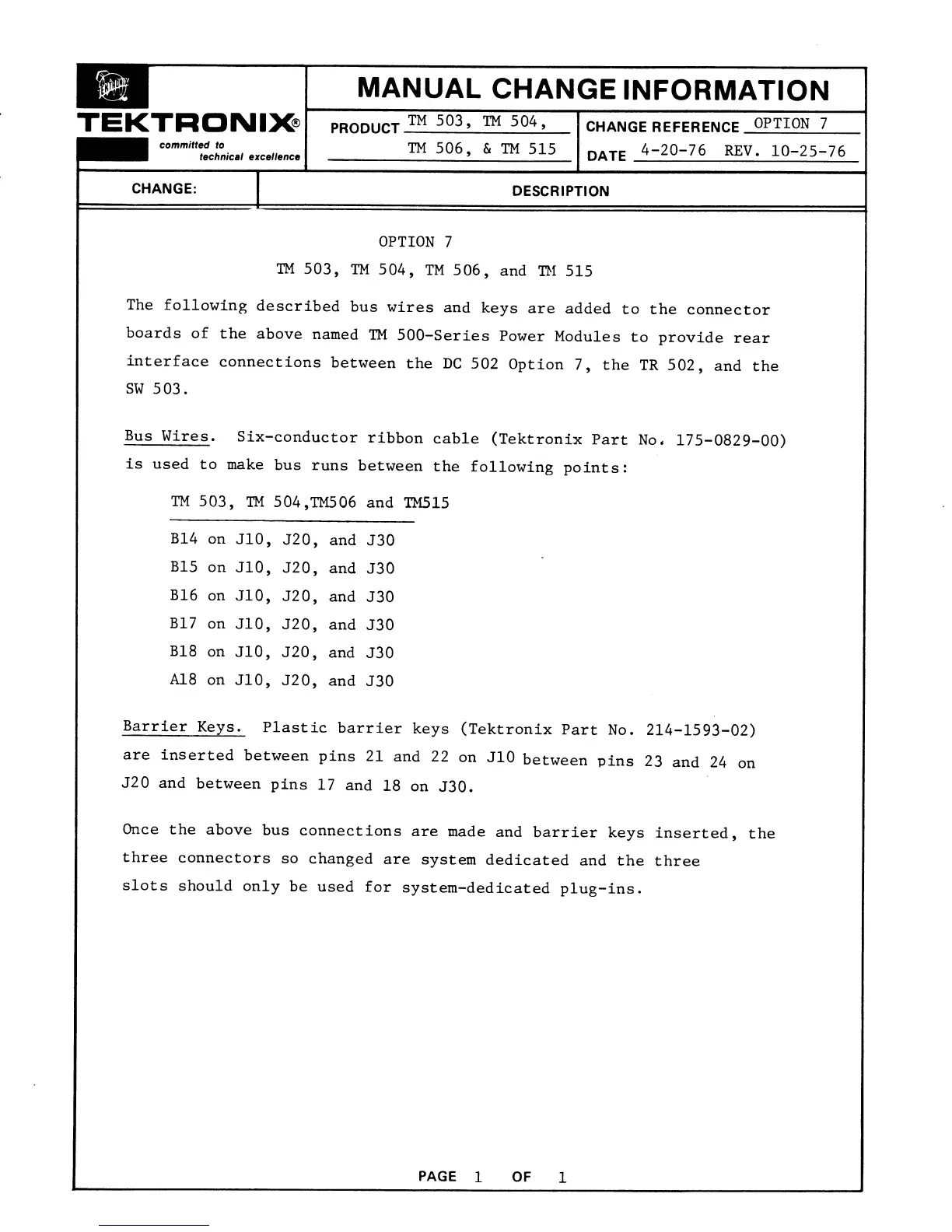

MANUAL
CHANGE
INFORMATION
PRODUCT
TM
503,
TM
504,
TM
506,
& TM
515
CHANGE
REFERENCE
OPTION
7
date
^^-20-76
REV. 10-25-76
CHANGE:
DESCRIPTION
OPTION
7
TM
503,
TM
504,
TM
506,
and
TM
515
The
following
described
bus
wires
and
keys
are
added
to
the
connector
boards
of
the
above
named
TM
500-Series
Power
Modules
to
provide
rear
interface
connections
between
the
DC
502
Option
7,
the
TR
502,
and
the
SW
503.
Bus
Wires
.
Six-conductor
ribbon
cable
(Tektronix
Part
No.
175-0829-00)
is
used
to
make
bus
runs
between
the
following
points:
TM
503,
TM
504,TM506
and TM515
B14
on
JIO,
J20,
and
J30
B15
on
JIO,
J20,
and
J30
B16
on JIO,
J20,
and
J30
B17
on
JIO,
J20,
and
J30
B18
on
JIO,
J20,
and
J30
A18
on
JIO,
J20,
and
J30
Barrier
Keys.
Plastic
barrier
keys
(Tektronix
Part
No. 214-1593-02)
are
inserted
between
pins
21
and 22
on
JIO
between
pins
23
and
24
on
J20 and
between
pins
17
and
18
on
J30.
Once
the
above
bus
connections
are
made
and
barrier
keys
inserted,
the
three
connectors
so
changed
are
system
dedicated
and
the
three
slots
should only
be
used
for
system—
dedicated
plug-ins.
PAGE
1
OF
1
