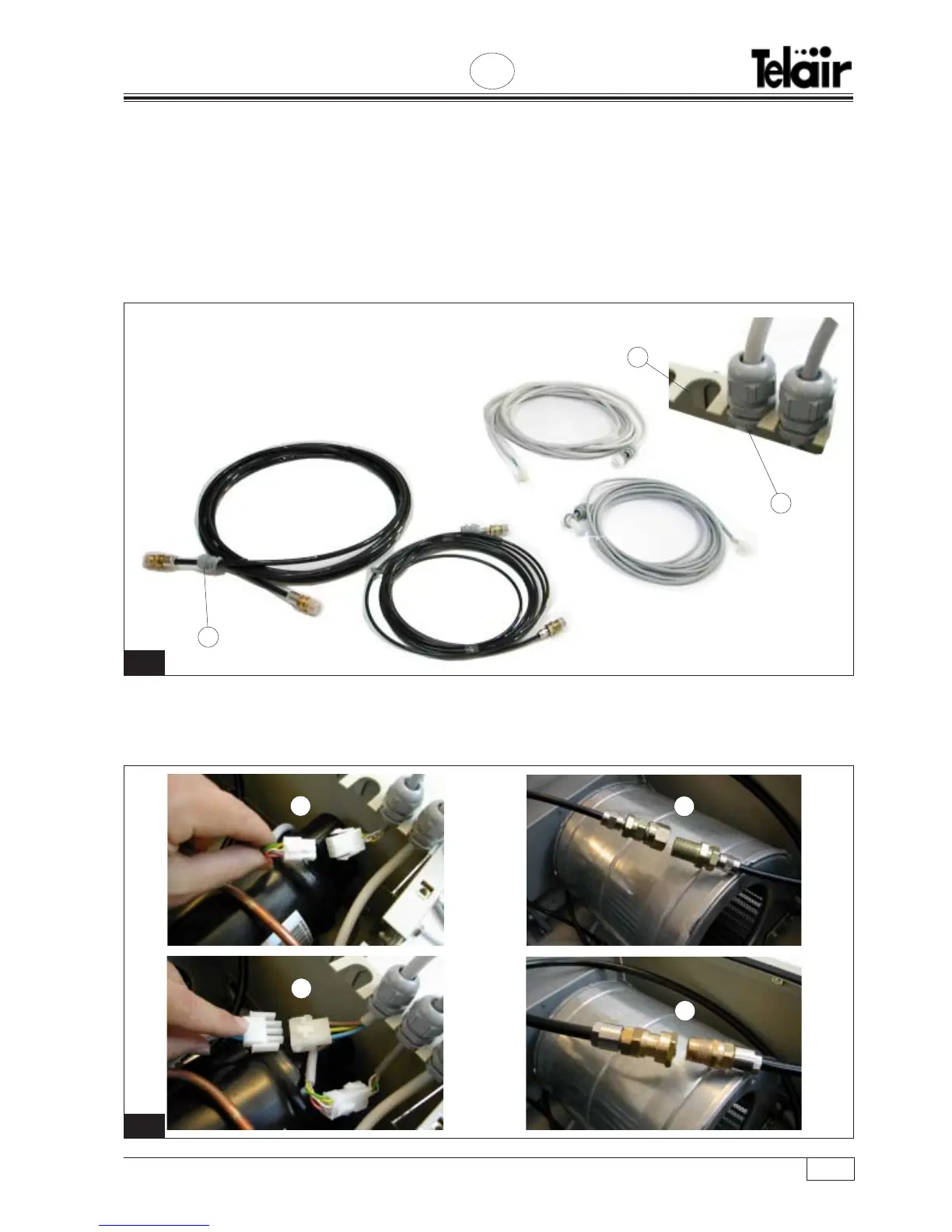

The extension cables and pipes are provided with
a sealing through bush Fig. 6 Ref. (1) which must
be fitted into each of the sockets Fig. 6 Ref. (2)
and then locked in place via the nut Fig. 6 Ref.
(3).
6
1
2
3
7
Connect both extension cables to the relevant
connectors of the condenser unit, Fig. 7 Ref. (1)
and (2).
Connect both pipes of the refrigerating gas to the
relevant quick couplings, screwing all the way down
using two wrenches Fig. 7 Ref. (3) and (4).
