Assembly Instructions
GB
Instructions for Stainless Steel Vertical Column Installation
2.5. Column SPL
For column SPL A
Guide the connection cables through the
column base towards the top end of the column,
prior to screwing the column to the foundation.
Use hex screws and plugs, stud bolts or stay
bolts to fix the column to the concrete foun-
dation (See chapter “. Foundation sketch” on
page ). We recommend using screws etc.
with a mm diameter and a length of mm
minimum.
Important! Please adhere to the torque indi-
cation for tightening as provided by the screw
manufacturer.
Please note: The fastening materials are not
included in the box.
Connect the SPL door intercom station to the
infrastructure on site and install it in the column
(cf. included user manual for the basic elec-
tronics to be installed). Test the door intercom
station.

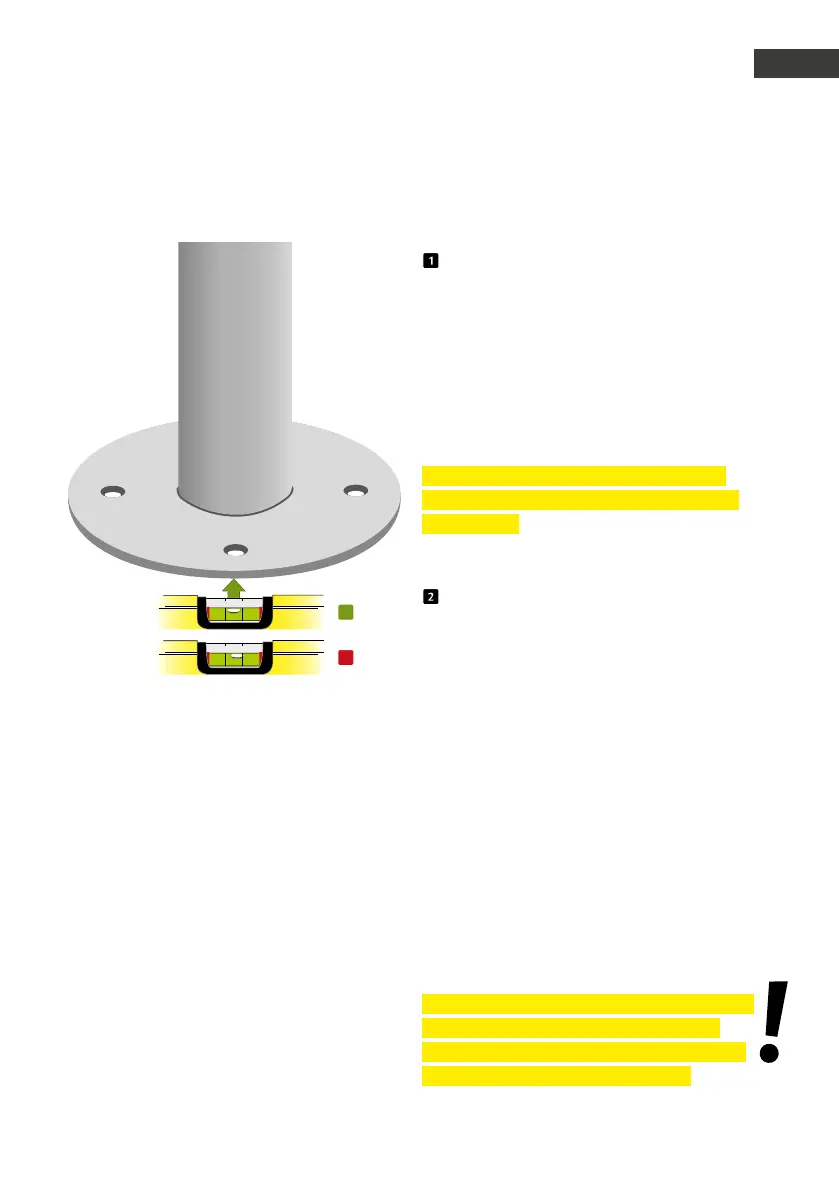

* Where the installation is not level on the concrete
foundation, this may lead to the column body
being warped, which then may result in problems
concerning the columns’ waterproofness.
*
