Finally, there are jumpers placed in the 10V position of J3. This provides a 0 to 10VDC analog
“0-10V " output. The alternate is a 0 to 10 mV output. This not recommended unless your recorder cannot handle
10V.
Labels are placed on the rear panel to show the station names assigned.

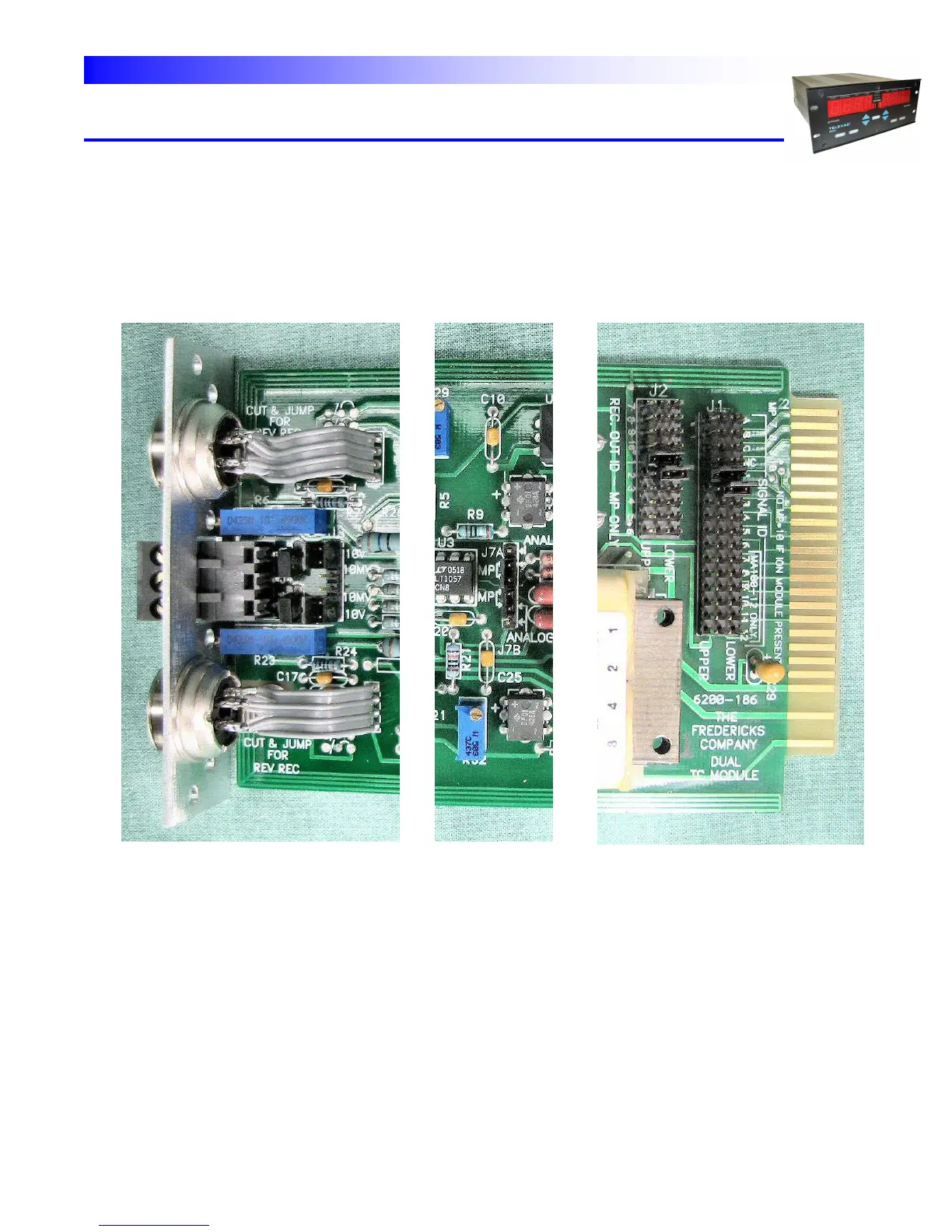

Fig. 9.3b - Thermocouple Module Details
