CONVECTION MODULE - A convection module is shown in Fig. 9.3c and 9.3d. This module is typical of all
modules. The assignment of station identification numbers on a convection module is accomplished by placing
jumpers across the appropriate pins in the SIGNAL ID and the REC OUT ID sections. The upper convection
station has been named station #1 and the lower convection station has been named station #2. Also two (2)
jumpers are placed in the "MP" positions of the ANALOG/MP section of the board.

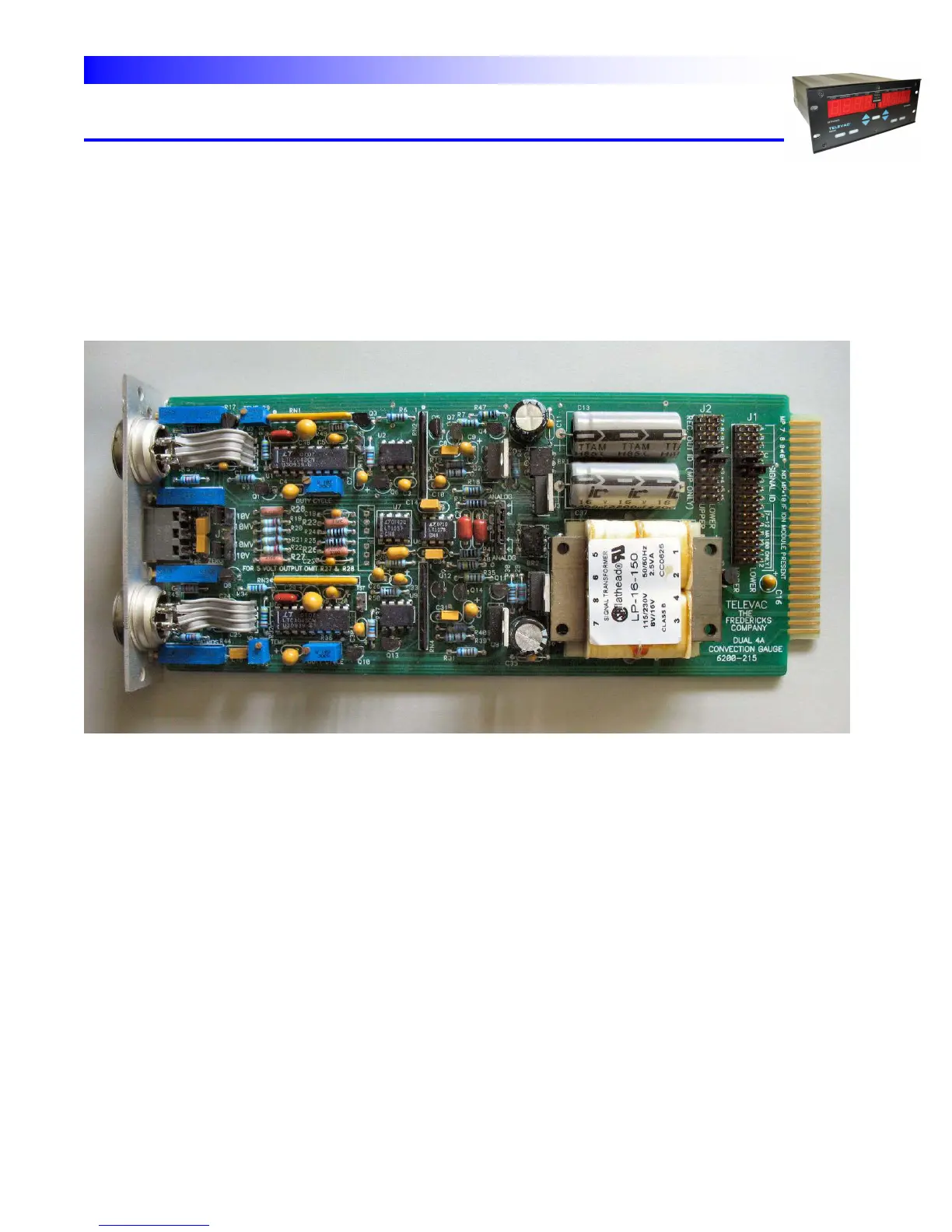

Fig. 9.3c – Dual Convection 4A Gauge Module
