H30FLEX Sky handheld DVB meter / Analyzer
10
Product operation
Top bar icons
In this section you can see a brief explanation of
the icons in the top bar:
1.- DTH Wideband
This feature is a shortcut to the DTH feature
selecting a wideband LNB.
See section 3.- DTH
2.- DTH
All the DTH (Direct To Home) features are collected
in this menu.
There are four options, depending on the type of
LNB: standard quad, wideband, smart and hybrid
LNB.
All the features work in the same way: the installer
must follow four steps indicated in the screen.
These steps are the same for all the types of LNB
and are explained below:
2.1.- Dish Alignment
This feature helps the installer to align the dish.

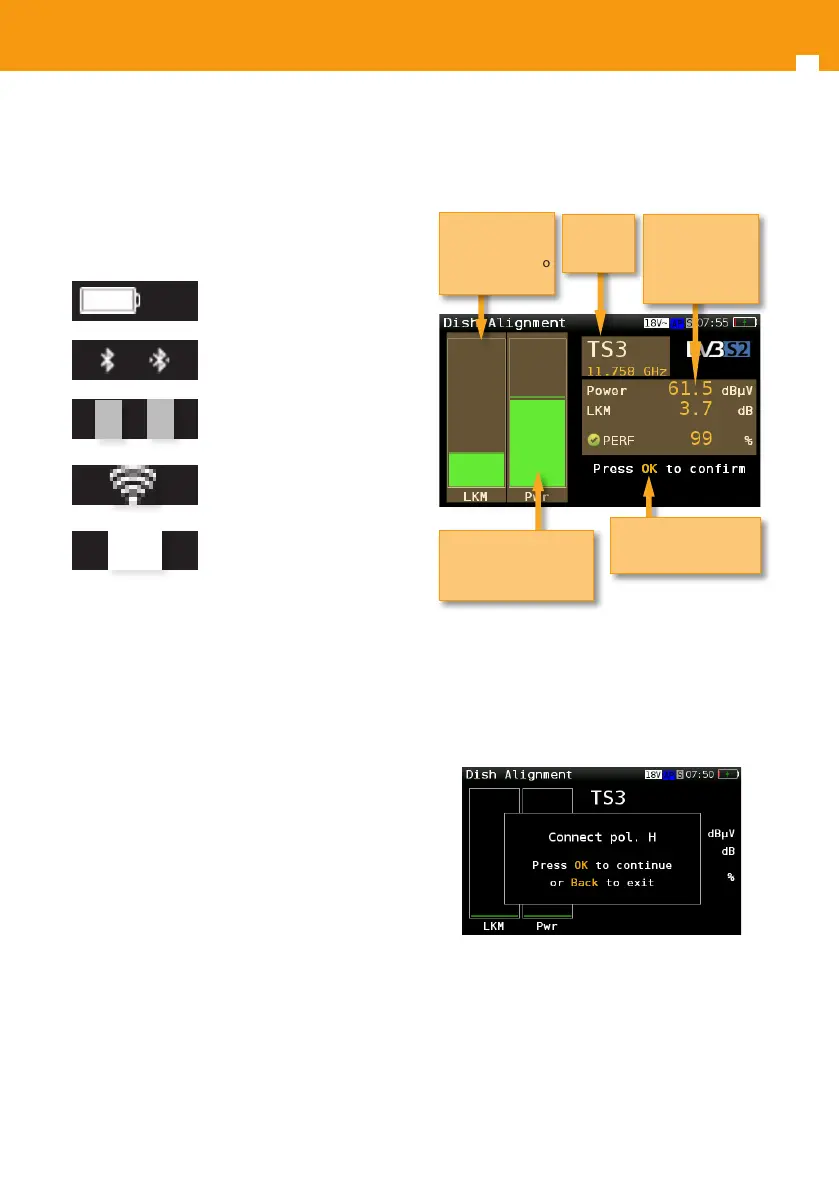

Below is a capture of the Dish Alignment window
with a brief explanation of its features.
The performance measurement is the quotient
100%
Battery charge
Bluetooth/Bluetooth ON
S
T
Terrestrial/Satellite
Wi-Fi on and in Access
Point mode
SCR9
Number of SCR slot when
SCR is on
between the current LKM value and the maximum
one. When the performance indicator is green, the
dish is aligned.
If you seletected the Wideband LNB or Hybrid LNB,
the H30FLEX SKY will show messages indicating
when you must switch between horizontal
and vertical polarization before starting the
corresponding measurement, as shown in the
image below:
Bar graph of LKM
measurement
Color according to
checkmarks
Follow the guided
steps to perform the
aligment
Bar graph of power
measurement
Color according to
performance
List of
measurements
Performance
measure has
pass/fail indicator
Channel
and
Frequency
