Televic CONFIDEA FLEX G4 - Page 22

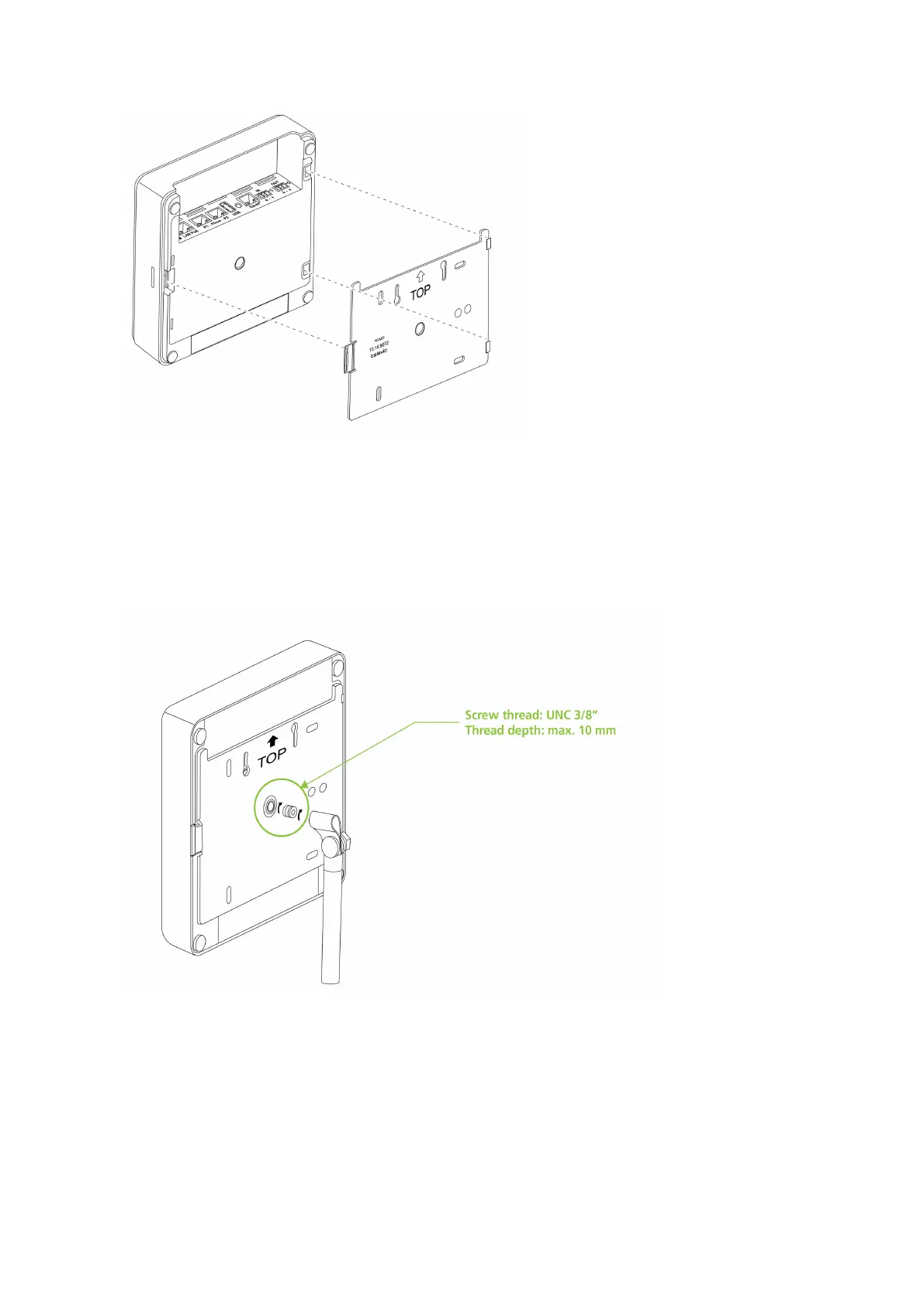

Figure 1-3 How to fix the bottom of the Confidea FLEX G4 WAP to a wall.
TRIPOD MOUNTING
The WAP can also be mounted on a tripod. The adapter to be inserted in the access point has a UNC 3/8”
screw thread. The thread depth shall be 10 mm maximum.
Figure 1-4 How to mount the WAP onto a tripod
WIRELESS ACCESS POINT (WAP) 22
