The configuration, shown in Figure 6, is suitable for smaller intercom systems when you want to operate the US-2002 as a
master headset station. In this configuration, the PS2001L Combine/Isolate switch is set to the Isolate position. With this
setting, the 2 intercom channels are completely separated. Typically, a headset is connected to the front panel of the US-2002,
and the US-2002 DIP switches are set to monaural operation (default setting), so both intercom channels are heard in the
monaural headphones (binaural headphone operation is not supported). The PA-KP local power supply is optional. When a
PA-KP is connected, the US-2002 automatically disconnects from system power supplied by the PS2001L. Since the US-2002
is not drawing power from the intercom system, more system power is available for additional belt packs, etc.
NOTE: A BOP-1000 may be used to rack mount 2 TW-7W splitters.
NOTE: For further information about cables, see Figure 15 on page 26.

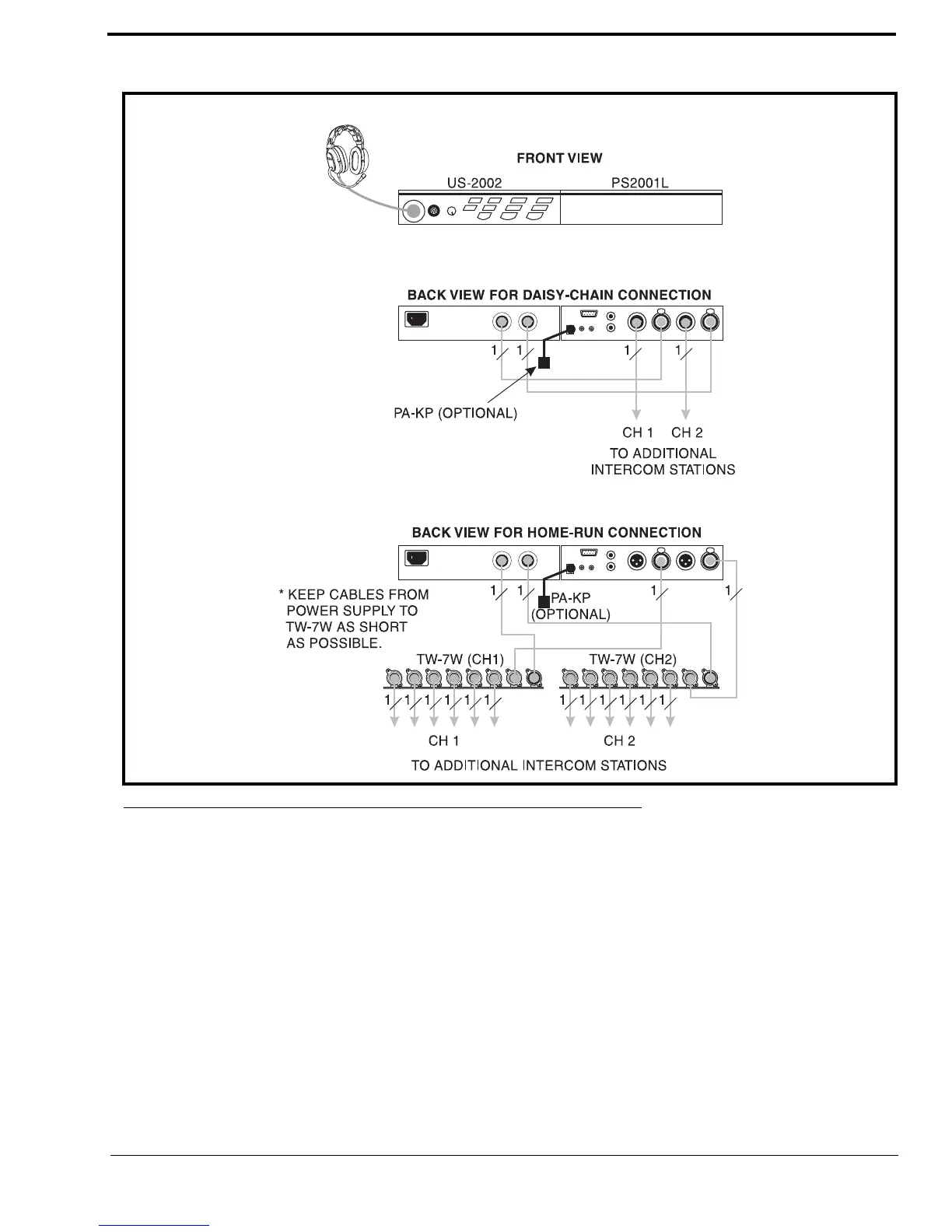

FIGURE 6. US-2002 Master Headset Station Configuration with 1 Power Supply.
