The configuration, shown in Figure 8, is suitable for large intercom system when you want to operate the US-2002 as a master
speaker station, with a separate speaker for each intercom channel. In this configuration, the SPS2001 Combine/Isolate
switches are set to the Combine position. With this setting, all intercom stations connected to the one SPS2001 are combined
on intercom channel 1 and all intercom stations connected to the other SPS2001 are combined on channel 2. The amplified
speaker in each SPS2001 monitors a single intercom channel, and the US-2002 dip switches are set to binaural operation (see
page 10.) The PA-KP local power supply is optional. When a PA-KP is connected, the US-2002 automatically disconnects
from system power. Since the US-2002 is not drawing power from the intercom system, more system power is available for
additional belt packs, etc.
NOTE: For more information about cables, see Figure 15 on page 26.
NOTE: A BOP-1000 may be used to rack mount 2 TW-7W splitters.

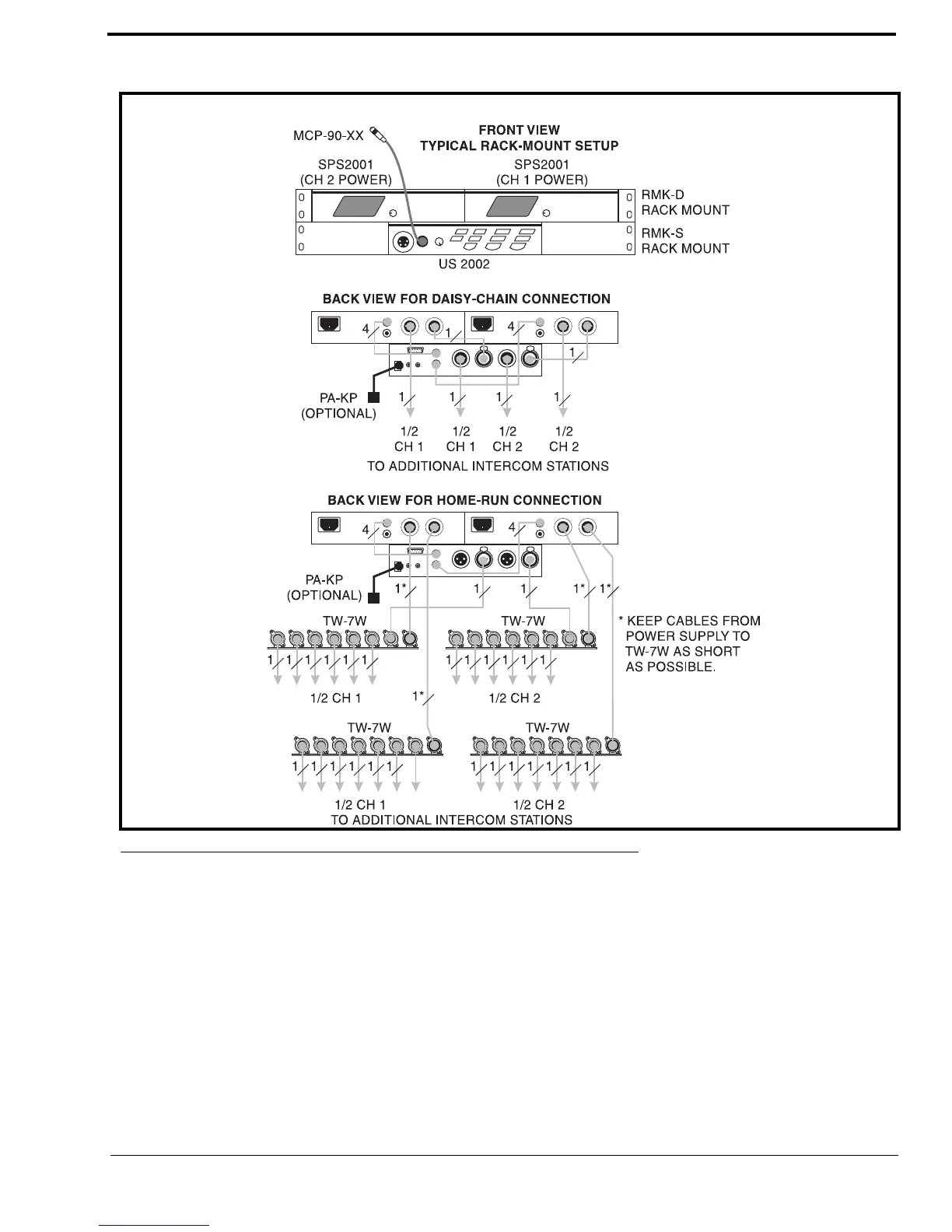

FIGURE 8. US-2002 Binaural Speaker Station Configuration with 2 Power Supplies.
