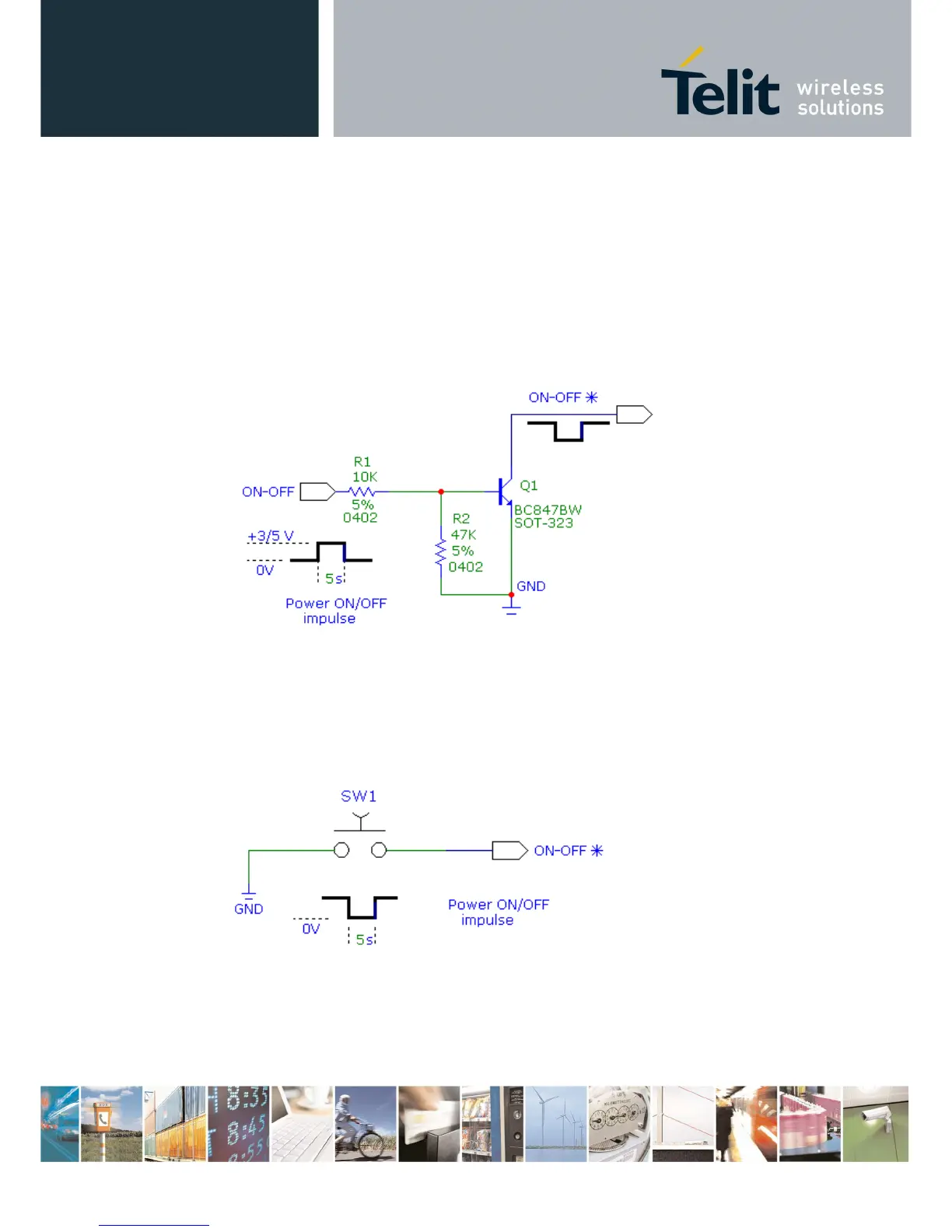

ON-OFF Circuit Examples:
1- If your system does not have Open Collector bus, use this interface:
2- Using a simple ON/OFF external switch:
