13.3. Recommended foot print for the application

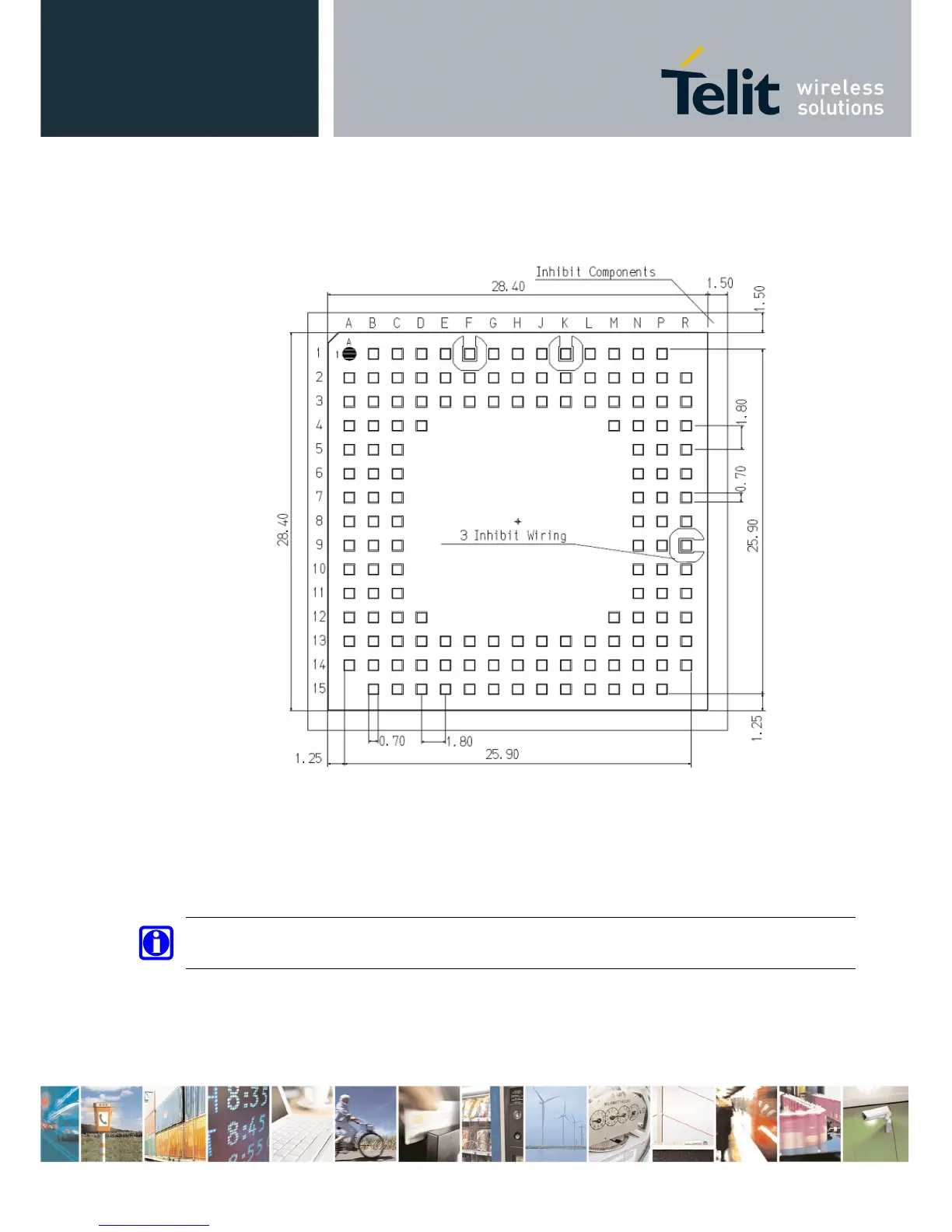

In order to easily rework the GE910 is suggested to consider on the application a 1.5mm Inhibit
area around the module.
It is also suggested, as common rule for an SMT component, to avoid having a mechanical part
of the application in direct contact with the module.
NOTE: In the customer application, the region under INHIBIT WIRING must be clear
from signal or ground paths.
