5.2.1. Power consumption Plots
This document section is showing the typical Current consumption plots (using Agilent 66319D)
in the normal working conditions of the module.

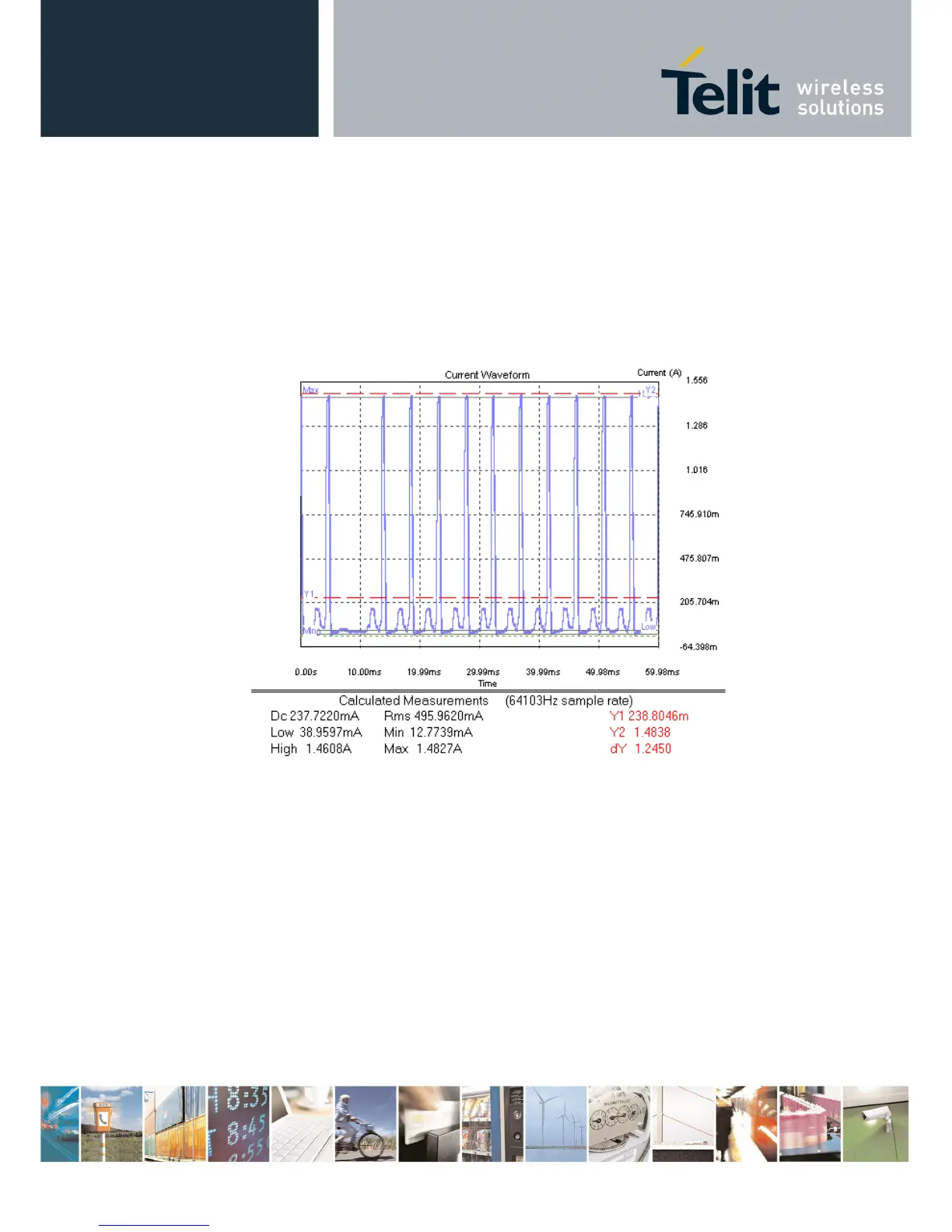

GSM900 – Voice Call – Power level 5
