6.3.2. Transmission line measurements
HP8753E VNA (Full-2-port calibration) has been used in this measurement session. A calibrated
coaxial cable has been soldered at the pad corresponding to GE910 RF output; a SMA connector
has been soldered to the board in order to characterize the losses of the transmission line
including the connector itself. During Return Loss / impedance measurements, the transmission
line has been terminated to 50 load.

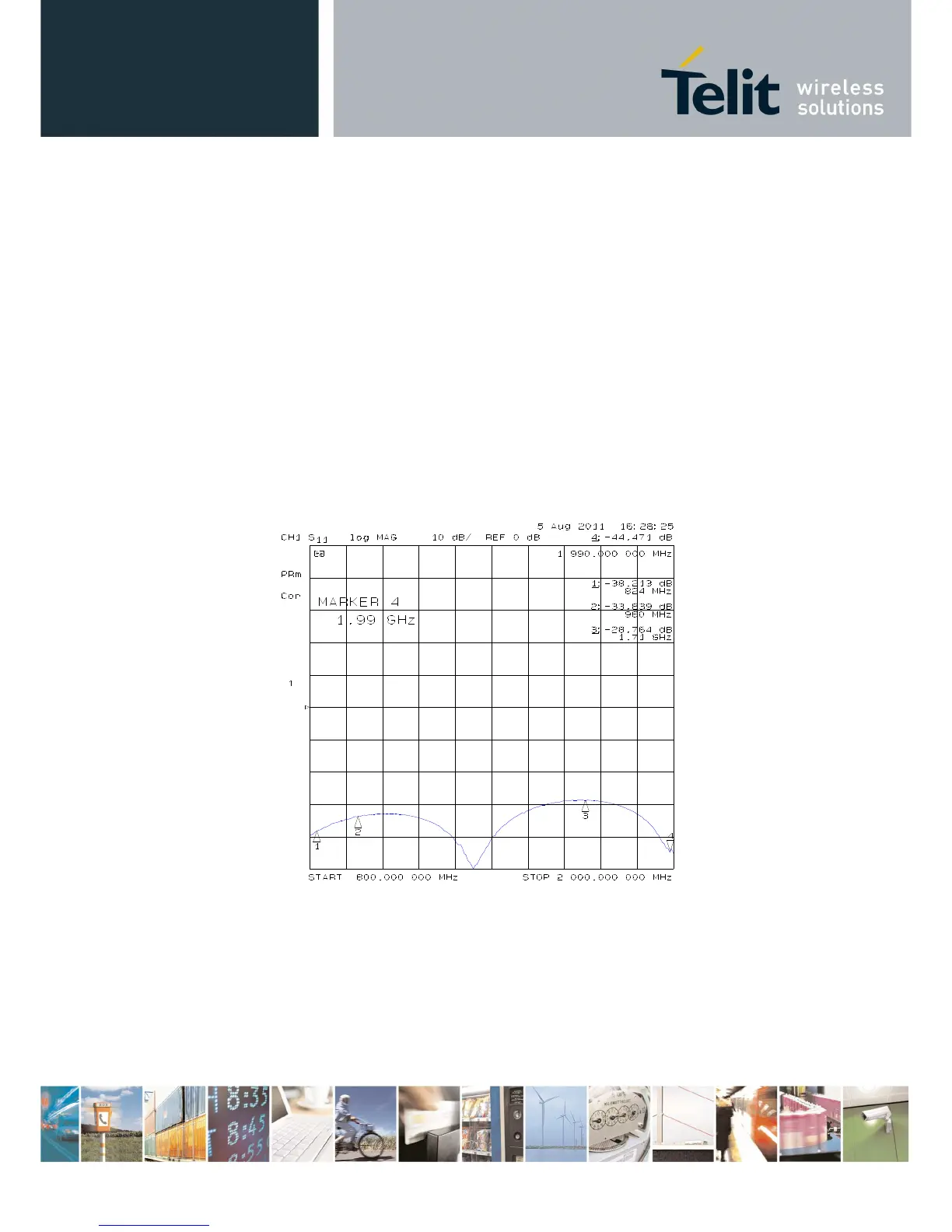

Return Loss plot of line under test is shown below:
