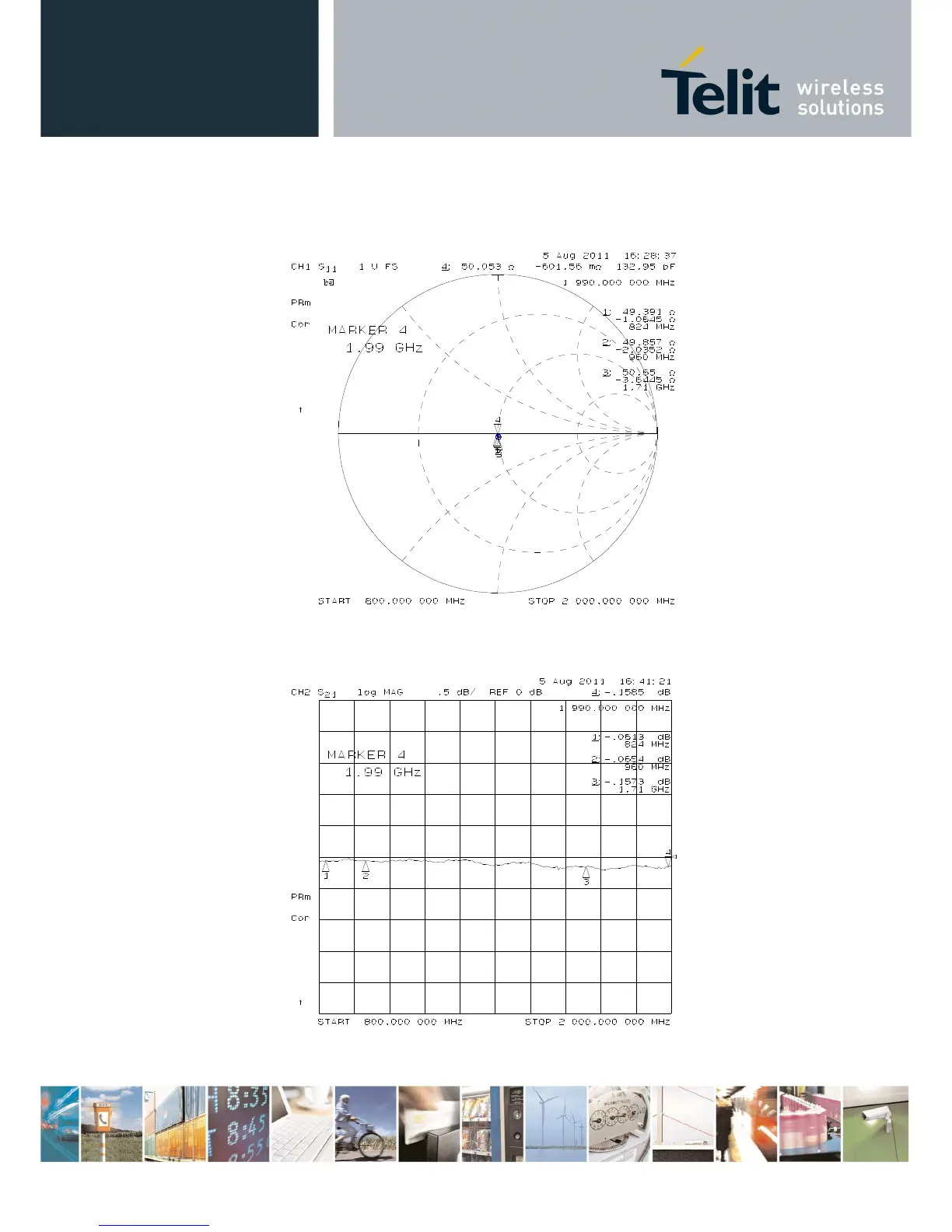

Line input impedance (in Smith Chart format, once the line has been terminated to 50 load) is
shown in the following figure:
Insertion Loss of G-CPW line plus SMA connector is shown below:
