LN930 M.2 Hardware User Guide
1VV0301078 Rev.10 – 2015-11-11
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights Reserved. Page 20 of 88
2.2.3
M.2 LN930 Module
The M.2 LTE module is based on Intel’s XMM™7160 modem platform. The M.2 LTE
module is a triple-mode (2G, 3G, and 4G) 3GPP release 9 modem providing datacard
functionality.
The M.2 LTE module includes support at the 75 pin application interface for
M.2 Control, USB 2.0 HS, GNSS, USIM and Antenna Tuning.
A block diagram of the M.2 LTE module is shown in
Figure 3
.

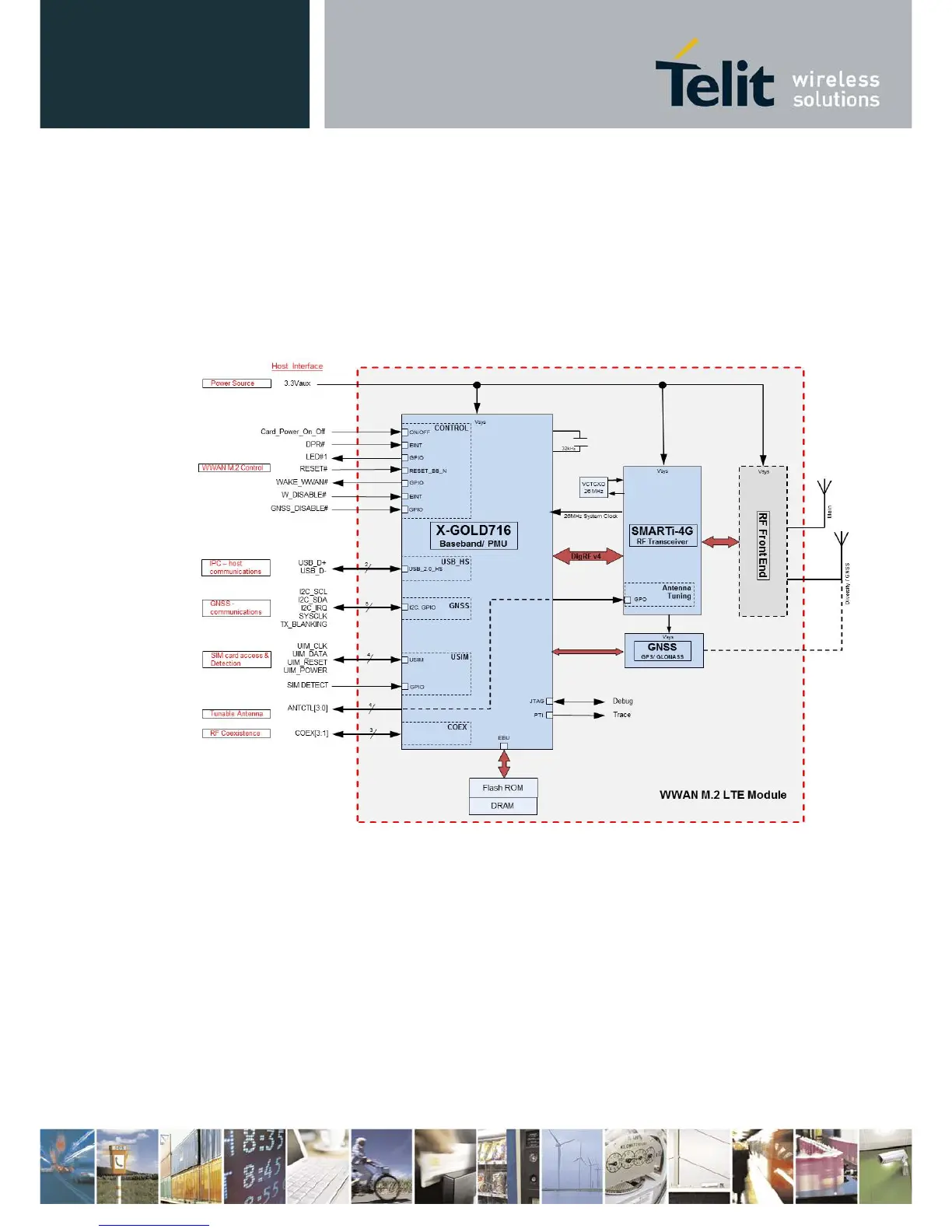

Figure 3 M.2 LTE Module Block Diagram
A more detailed interconnect diagram of the RF Engine utilized on the M.2 LTE Module is
shown in Figure 4.
